#include <ImFusion/ImageMath/Tpl/ResampleTpl.h>

Resample an ImageMath operand to a different coordinate system, optionally including a deformation. More...

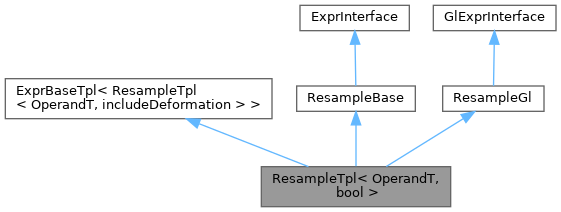

Inheritance diagram for ResampleTpl< OperandT, bool >:

Detailed Description

template<typename OperandT, bool>
class ImFusion::ImageMath::internal::ResampleTpl< OperandT, bool >

Resample an ImageMath operand to a different coordinate system, optionally including a deformation.

Parameters

includeDeformation - deformation and resampling is combined into a single leaf to avoid clamping artifacts. If this parameter is set to false, deformations are not considered even if the associated images have them.

Warning: the CPU mode performs nearest-neighbor interpolation, whereas the GPU mode may use linear interpolation if the leaves support this This will yield different results in the CPU implementation relative to the GPU implementation. The CPU implementation currently only supports "edge" rounding.

Public Types
using	expr_type = typename OperandT::expr_type

using	imf_img_type = typename OperandT::imf_img_type

using	decayed_imf_img_type = std::decay_t<imf_img_type>

using	var_type = typename OperandT::var_type

Public Member Functions
	ResampleTpl (const OperandT &operand, std::vector< ImageDescriptorWorld > operandDesc, std::vector< ImageDescriptorWorld > resultDesc, std::vector< std::shared_ptr< Deformation > > deformations={}, std::vector< std::reference_wrapper< SharedImage > > sharedImagesForDeformations={})
	Constructor where ImageDescriptors may vary between images.

	ResampleTpl (const OperandT &operand, const ImageDescriptorWorld &operandDesc, const ImageDescriptorWorld &resultDesc, std::optional< std::pair< std::shared_ptr< Deformation >, std::reference_wrapper< SharedImage > > > deformationArgs=std::nullopt)
	Constructor.

	ResampleTpl (const ResampleTpl &other)

template<typename T = decayed_imf_img_type>
	ResampleTpl (const OperandT &operand, SharedImage &operandImg, SharedImage &resultImg, std::enable_if_t< std::is_same_v< T, SharedImage > > *=nullptr)

template<typename T = decayed_imf_img_type>
	ResampleTpl (const OperandT &operand, SharedImageSet &operandImg, SharedImageSet &resultImg, std::enable_if_t< std::is_same_v< T, SharedImageSet > > *=nullptr)

IMFUSION_STRONG_INLINE expr_type	eval (const std::size_t i, const vec4i &coord) const

template<typename ImgT>
auto	convertToMemImgExpr () const noexcept

auto	convertToSharedImgExpr (std::size_t index) const

template<typename SubOperandT>
auto	substituteVariable (const SubOperandT &operand) const
	Substitutes any Variable leaf.

DeviceStrategy	deviceStrategy () const override
	Return DeviceStrategy of this expression.

int	numImgs () const override
	Return number of images of this expression.

ImageDescriptor	imgDesc () const override
	Return ImageDescriptor of this expression. This reference is expected to remain the same while the class exists.

GlExprInterface &	operand () override

const GlExprInterface &	operand () const override

const std::vector< ImageDescriptorWorld > &	operandDesc () const override

const std::vector< ImageDescriptorWorld > &	resultDesc () const override

const std::vector< std::shared_ptr< Deformation > > &	deformations () const override

const std::vector< std::reference_wrapper< SharedImage > > &	sharedImagesForDeformation () const override

Public Member Functions inherited from ExprBaseTpl< ResampleTpl< OperandT, includeDeformation > >
const auto &	get () const
	get a const reference to this with the actual type

auto &	get ()
	get a reference to this with the actual type

auto	polyWrapper () const

auto	uniquePolyWrapper () const

auto	sharedPolyWrapper () const

auto	binaryOp (const ExprBaseTpl< RhsT > &rhs, const Op &func=Op()) const

auto	binaryOp (RhsT rhs, const Op &func=Op(), typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (Eigen::Matrix< RhsT, Dim, 1, Options, MaxRows, MaxCols > rhs, const Op &func=Op(), typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (const ExprBaseTpl< RhsT > &rhs, const Op &func, const StringOp &stringFunc) const

auto	binaryOp (RhsT rhs, const Op &func, const StringOp &stringFunc, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (Eigen::Matrix< RhsT, Dim, 1, Options, MaxRows, MaxCols > rhs, const Op &func, const StringOp &stringFunc, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	unaryOp (const Op &func=Op()) const

auto	unaryOp (const Op &func, const StringOp &stringFunc) const

reduction_type	reduce (std::vector< vec4i > *arg=nullptr) const

auto	forceCPU () const
	Forces CPU execution.

auto	forceGPU () const
	Forces GPU execution.

auto	channelSwizzle (const std::vector< std::size_t > &indices) const

auto	head ()

	ADD_SPECIAL_SWIZZLE (x, {0})

	ADD_SPECIAL_SWIZZLE (y, {1})

	ADD_SPECIAL_SWIZZLE (z, {2})

	ADD_SPECIAL_SWIZZLE (w, {3})

	ADD_SPECIAL_SWIZZLE (r, {0})

	ADD_SPECIAL_SWIZZLE (g, {1})

	ADD_SPECIAL_SWIZZLE (b, {2})

	ADD_SPECIAL_SWIZZLE (a, {3})

	ADD_SPECIAL_SWIZZLE (xy, std::vector< size_t >({0, 1}))

	ADD_SPECIAL_SWIZZLE (rg, std::vector< size_t >({0, 1}))

	ADD_SPECIAL_SWIZZLE (xyz, std::vector< size_t >({0, 1, 2}))

	ADD_SPECIAL_SWIZZLE (xyzw, std::vector< size_t >({0, 1, 2, 3}))

	ADD_SPECIAL_SWIZZLE (rgb, std::vector< size_t >({0, 1, 2}))

	ADD_SPECIAL_SWIZZLE (rgba, std::vector< size_t >({0, 1, 2, 3}))

auto	streamChannels (int numStreamedChannels) const

auto	substituteVariableWithImg (T &img) const

auto	operator- () const

auto	cast () const

auto	storageToOriginal (const ImageDescriptor &desc)
	Apply shift/scale to the operand,.

auto	originalToStorage (const ImageDescriptor &desc)
	Apply shift/scale to the operand,.

auto	channelReduction ()

	ADD_CHANNEL_REDUCTION_OPERATOR (channelSum, add)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelProd, mult)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelMax, max)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelMin, min)

	ADD_CHANNEL_REDUCTION_OPERATOR (length, length)

auto	channelMean ()

auto	squaredLength () const

auto	channelDistance (const ExprBaseTpl< RhsT > &other) const

auto	channelDistance (const Eigen::Matrix< T, Dim, 1 > c)

auto	dot (const ExprBaseTpl< RhsT > &other) const

auto	stashThenApply (const ExprBaseTpl< VariableT > &varExpr) const

auto	hnormalized () const

auto	normalized () const

auto	homogeneous () const

auto	appendZero () const

auto	select (const ExprBaseTpl< LhsT > &lhs, const ExprBaseTpl< RhsT > &rhs) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (LhsT lhs, RhsT rhs, typename std::enable_if< std::is_arithmetic_v< LhsT > &&std::is_arithmetic_v< RhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (LhsT lhs, const ExprBaseTpl< RhsT > &rhs, typename std::enable_if< std::is_arithmetic_v< LhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (const ExprBaseTpl< LhsT > &lhs, RhsT rhs, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

	ADD_REDUCTION_OPERATOR (sum, add)

	ADD_REDUCTION_OPERATOR (prod, mult)

	ADD_ARG_REDUCTION_OPERATOR (min, min)

	ADD_ARG_REDUCTION_OPERATOR (max, max)

Eigen::Matrix< double, Eigen::Dynamic, 1 >	mean () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l1Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	squaredl2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lpNorm (double p) const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lInfNorm () const

auto	evaluateIntoImage (bool clearShiftScale=false) const
	Create an empty image and evaluate this expression into it.

auto	toMask () const

auto	toDeformation (const ImageDescriptorWorld imgDesc) const

auto	resample (const ImageDescriptorWorld &inputDesc, const ImageDescriptorWorld &outputDesc) const

auto	resample (SharedImage &inputDesc, SharedImage &outputDesc, std::enable_if_t< std::is_same_v< T, SharedImage > > *=nullptr) const

auto	resample (SharedImageSet &inputDesc, SharedImageSet &outputDesc, std::enable_if_t< std::is_same_v< T, SharedImageSet > > *=nullptr) const

Public Member Functions inherited from ResampleGl
	ResampleGl (const ResampleGl &other)

	ResampleGl (ResampleGl &&other)

ResampleGl &	operator= (const ResampleGl &other)=delete

ResampleGl &	operator= (ResampleGl &&other)=delete

std::string	evalString (bool tagAndAssign=true) const override
	Print expression.

void	tagAndAssignNames (std::unordered_map< internal::TaggingIndex, const void * > &taggedLeaves, std::unordered_map< std::type_index, int > &countPerLeafType, const std::string &prefix) const override
	We need to tag leaves and tell unique leaves that they are responsible to define the uniforms and set the shader arguments.

void	getUniformDefinitionList (std::string &definitionList, const std::vector< int > &indices, const std::string &prefix) const override
	Collect uniform/sampler definitions.

void	getVariableDefinitionList (std::string &definitionList, const std::vector< int > &indices, const std::string &prefix) const override
	Collect variable definitions.

int	setArguments (GL::Program &p, const std::vector< int > &indices, const std::string &prefix) const override
	Set uniform/sampler arguments.

Public Member Functions inherited from GlExprInterface
ExprInterface &	exprInterface ()
	Get image descriptor of the wrapped expression.

const ExprInterface &	exprInterface () const

virtual bool	setMagFilter (ImageMath::MagFilter mag)
	Set interpolation behaviour of the current leaf (only)

virtual bool	setWrap (ImageMath::Wrap wrap)
	Set interpolation behaviour of the current leaf (only)

bool	setMagFilterRecursive (ImageMath::MagFilter mag)
	Set interpolation behaviour of the current leaf and all of its children.

bool	setWrapRecursive (ImageMath::Wrap wrap)
	Set wrap behaviour of the current leaf and all of its children.

Static Public Attributes
static constexpr bool	has_variable = OperandT::has_variable

Additional Inherited Members
Protected Member Functions inherited from ResampleGl
void	init ()

std::vector< GlExprInterface * >	children () override
	Used for traversing the expression tree. Contains the immediate children of node.

std::vector< const GlExprInterface * >	children () const override
	Used for traversing the expression tree. Contains the immediate children of node.

Constructor & Destructor Documentation

◆ ResampleTpl() [1/2]

template<typename OperandT, bool>

ResampleTpl	(	const OperandT &	operand,
		std::vector< ImageDescriptorWorld >	operandDesc,
		std::vector< ImageDescriptorWorld >	resultDesc,
		std::vector< std::shared_ptr< Deformation > >	deformations = {},
		std::vector< std::reference_wrapper< SharedImage > >	sharedImagesForDeformations = {} )

inline

Constructor where ImageDescriptors may vary between images.

Parameters

resultDesc	the ImageDescriptorWorld of the final expression for each image in the SharedImageSet
operandDesc	the ImageDescriptorWorld of the operand, for each image in the SharedImageSet
deformations	the deformations for each image in the SharedImageSet. Is only considered if the template argument includeDeformation is true.
sharedImagesForDeformations	the SharedImages for each deformation. Is only considered if the template argument includeDeformation is true. Required for technical reasons related to deformations.

◆ ResampleTpl() [2/2]

template<typename OperandT, bool>

ResampleTpl	(	const OperandT &	operand,
		const ImageDescriptorWorld &	operandDesc,
		const ImageDescriptorWorld &	resultDesc,
		std::optional< std::pair< std::shared_ptr< Deformation >, std::reference_wrapper< SharedImage > > >	deformationArgs = std::nullopt )

inline

Constructor.

Parameters

resultDesc	the ImageDescriptorWorld of the result
operandDesc	the ImageDescriptorWorld of the operand.
deformationArgs	the deformation and SharedImage for the deformation. Is only considered if the template argument includeDeformation is true.

Member Function Documentation

◆ deviceStrategy()

template<typename OperandT, bool>

DeviceStrategy deviceStrategy ( ) const

inlineoverridevirtual

Return DeviceStrategy of this expression.

Implements ExprInterface.

◆ numImgs()

template<typename OperandT, bool>

int numImgs ( ) const

inlineoverridevirtual

Return number of images of this expression.

Implements ExprInterface.

◆ imgDesc()

template<typename OperandT, bool>

ImageDescriptor imgDesc ( ) const

inlineoverridevirtual

Return ImageDescriptor of this expression. This reference is expected to remain the same while the class exists.

Implements ExprInterface.

◆ operand() [1/2]

template<typename OperandT, bool>

GlExprInterface & operand ( )

inlineoverridevirtual

Implements ResampleBase.

◆ operand() [2/2]

template<typename OperandT, bool>

const GlExprInterface & operand ( ) const

inlineoverridevirtual

Implements ResampleBase.

◆ operandDesc()

template<typename OperandT, bool>

const std::vector< ImageDescriptorWorld > & operandDesc ( ) const

inlineoverridevirtual

Implements ResampleBase.

◆ resultDesc()

template<typename OperandT, bool>

const std::vector< ImageDescriptorWorld > & resultDesc ( ) const

inlineoverridevirtual

Implements ResampleBase.

◆ deformations()

template<typename OperandT, bool>

const std::vector< std::shared_ptr< Deformation > > & deformations ( ) const

inlineoverridevirtual

Implements ResampleBase.

◆ sharedImagesForDeformation()

template<typename OperandT, bool>

const std::vector< std::reference_wrapper< SharedImage > > & sharedImagesForDeformation ( ) const

inlineoverridevirtual

Implements ResampleBase.

The documentation for this class was generated from the following files:

ImFusion/ImageMath/Tpl/ResampleTpl.h
ImFusion/ImageMath/Utils/ForwardDeclarations.h

Detailed Description

Public Types

Public Member Functions

Static Public Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ ResampleTpl() [1/2]

◆ ResampleTpl() [2/2]

Member Function Documentation

◆ deviceStrategy()

◆ numImgs()

◆ imgDesc()

◆ operand() [1/2]

◆ operand() [2/2]

◆ operandDesc()

◆ resultDesc()

◆ deformations()

◆ sharedImagesForDeformation()
