#include <ImFusion/ImageMath/Tpl/MaskLeaf.h>

Use a Mask/GlMask as an ImageMath leaf that can be used in ImageMath expressions. More...

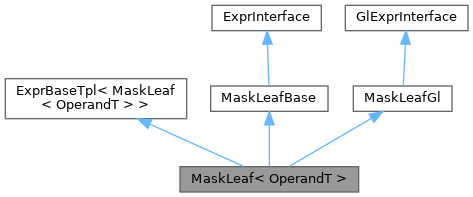

Inheritance diagram for MaskLeaf< OperandT >:

Detailed Description

template<typename OperandT>
class ImFusion::ImageMath::MaskLeaf< OperandT >

Use a Mask/GlMask as an ImageMath leaf that can be used in ImageMath expressions.

The "value" parameter for the mask is itself an ImageMath expression.

Warning: GlMasks expect their "value" parameter in normalized storage convention, Masks expect their "value" in storage convention. ImageMath typically works in (unnormalized) original convention,

See also: ImageDescriptor The normalization is performed with the pixelType of the expression's ImageDescriptor, it is the responsibility of the user to verify that this yields something that the mask expects. The original->storage conversion must be performed by the user. Users must be aware of the fact that value domain conversions can result in rounding errors.

Example usage, here si is a SharedImage

std::shared_ptr<CroppingMask> m = std::make_shared<CroppingMask>(si.descriptor().dimensions());
m->setRoundness(100);
auto maskLeaf = ImageMath::makeMaskLeaf( ImageMath::makeArray(si), m); // First argument is redundant as CroppingMask doesn't use 'value'
auto derivedExpr = (maskLeaf > 0).select(1.0,2.0);

Warning: Using different underlying types or shift+scale values in the operand will give undefined results for masks that depend on the operand.

Public Types
using	var_type = typename OperandT::var_type

using	expr_type = typename std::conditional<std::is_void_v<typename OperandT::expr_type>, void, double>::type

using	imf_img_type = typename OperandT::imf_img_type

Public Member Functions
	MaskLeaf (const OperandT &operand, std::shared_ptr< Mask > mask)

template<typename ImgT>
auto	convertToMemImgExpr () const noexcept

auto	convertToSharedImgExpr (std::size_t index) const
	SharedImageSet version.

template<typename SubOperandT>
auto	substituteVariable (const SubOperandT &operand) const
	Substitutes any Variable leaf.

IMFUSION_STRONG_INLINE expr_type	eval (const std::size_t, const vec4i &coord) const
	CPU implementation.

int	numImgs () const override
	Return number of images of this expression.

DeviceStrategy	deviceStrategy () const override
	Return DeviceStrategy of this expression.

ImageDescriptor	imgDesc () const override
	Return ImageDescriptor of this expression. This reference is expected to remain the same while the class exists.

std::vector< internal::GlExprInterface * >	children () override
	Used for traversing the expression tree. Contains the immediate children of node.

std::vector< const internal::GlExprInterface * >	children () const override
	Used for traversing the expression tree. Contains the immediate children of node.

const std::shared_ptr< Mask > &	mask () const override

internal::GlExprInterface &	operand () override

const internal::GlExprInterface &	operand () const override

Public Member Functions inherited from ExprBaseTpl< MaskLeaf< OperandT > >
const auto &	get () const
	get a const reference to this with the actual type

auto &	get ()
	get a reference to this with the actual type

auto	polyWrapper () const

auto	uniquePolyWrapper () const

auto	sharedPolyWrapper () const

auto	binaryOp (const ExprBaseTpl< RhsT > &rhs, const Op &func=Op()) const

auto	binaryOp (RhsT rhs, const Op &func=Op(), typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (Eigen::Matrix< RhsT, Dim, 1, Options, MaxRows, MaxCols > rhs, const Op &func=Op(), typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (const ExprBaseTpl< RhsT > &rhs, const Op &func, const StringOp &stringFunc) const

auto	binaryOp (RhsT rhs, const Op &func, const StringOp &stringFunc, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (Eigen::Matrix< RhsT, Dim, 1, Options, MaxRows, MaxCols > rhs, const Op &func, const StringOp &stringFunc, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	unaryOp (const Op &func=Op()) const

auto	unaryOp (const Op &func, const StringOp &stringFunc) const

reduction_type	reduce (std::vector< vec4i > *arg=nullptr) const

auto	forceCPU () const
	Forces CPU execution.

auto	forceGPU () const
	Forces GPU execution.

auto	channelSwizzle (const std::vector< std::size_t > &indices) const

auto	head ()

	ADD_SPECIAL_SWIZZLE (x, {0})

	ADD_SPECIAL_SWIZZLE (y, {1})

	ADD_SPECIAL_SWIZZLE (z, {2})

	ADD_SPECIAL_SWIZZLE (w, {3})

	ADD_SPECIAL_SWIZZLE (r, {0})

	ADD_SPECIAL_SWIZZLE (g, {1})

	ADD_SPECIAL_SWIZZLE (b, {2})

	ADD_SPECIAL_SWIZZLE (a, {3})

	ADD_SPECIAL_SWIZZLE (xy, std::vector< size_t >({0, 1}))

	ADD_SPECIAL_SWIZZLE (rg, std::vector< size_t >({0, 1}))

	ADD_SPECIAL_SWIZZLE (xyz, std::vector< size_t >({0, 1, 2}))

	ADD_SPECIAL_SWIZZLE (xyzw, std::vector< size_t >({0, 1, 2, 3}))

	ADD_SPECIAL_SWIZZLE (rgb, std::vector< size_t >({0, 1, 2}))

	ADD_SPECIAL_SWIZZLE (rgba, std::vector< size_t >({0, 1, 2, 3}))

auto	streamChannels (int numStreamedChannels) const

auto	substituteVariableWithImg (T &img) const

auto	operator- () const

auto	cast () const

auto	storageToOriginal (const ImageDescriptor &desc)
	Apply shift/scale to the operand,.

auto	originalToStorage (const ImageDescriptor &desc)
	Apply shift/scale to the operand,.

auto	channelReduction ()

	ADD_CHANNEL_REDUCTION_OPERATOR (channelSum, add)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelProd, mult)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelMax, max)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelMin, min)

	ADD_CHANNEL_REDUCTION_OPERATOR (length, length)

auto	channelMean ()

auto	squaredLength () const

auto	channelDistance (const ExprBaseTpl< RhsT > &other) const

auto	channelDistance (const Eigen::Matrix< T, Dim, 1 > c)

auto	dot (const ExprBaseTpl< RhsT > &other) const

auto	stashThenApply (const ExprBaseTpl< VariableT > &varExpr) const

auto	hnormalized () const

auto	normalized () const

auto	homogeneous () const

auto	appendZero () const

auto	select (const ExprBaseTpl< LhsT > &lhs, const ExprBaseTpl< RhsT > &rhs) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (LhsT lhs, RhsT rhs, typename std::enable_if< std::is_arithmetic_v< LhsT > &&std::is_arithmetic_v< RhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (LhsT lhs, const ExprBaseTpl< RhsT > &rhs, typename std::enable_if< std::is_arithmetic_v< LhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (const ExprBaseTpl< LhsT > &lhs, RhsT rhs, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

	ADD_REDUCTION_OPERATOR (sum, add)

	ADD_REDUCTION_OPERATOR (prod, mult)

	ADD_ARG_REDUCTION_OPERATOR (min, min)

	ADD_ARG_REDUCTION_OPERATOR (max, max)

Eigen::Matrix< double, Eigen::Dynamic, 1 >	mean () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l1Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	squaredl2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lpNorm (double p) const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lInfNorm () const

auto	evaluateIntoImage (bool clearShiftScale=false) const
	Create an empty image and evaluate this expression into it.

auto	toMask () const

auto	toDeformation (const ImageDescriptorWorld imgDesc) const

auto	resample (const ImageDescriptorWorld &inputDesc, const ImageDescriptorWorld &outputDesc) const

auto	resample (SharedImage &inputDesc, SharedImage &outputDesc, std::enable_if_t< std::is_same_v< T, SharedImage > > *=nullptr) const

auto	resample (SharedImageSet &inputDesc, SharedImageSet &outputDesc, std::enable_if_t< std::is_same_v< T, SharedImageSet > > *=nullptr) const

Public Member Functions inherited from MaskLeafGl
void	tagAndAssignNames (std::unordered_map< ImageMath::internal::TaggingIndex, const void * > &taggedLeaves, std::unordered_map< std::type_index, int > &countPerLeafType, const std::string &prefix) const override
	We need to tag leaves and tell unique leaves that they are responsible to define the uniforms and set the shader arguments.

void	getUniformDefinitionList (std::string &definitionList, const std::vector< int > &indices, const std::string &prefix) const override
	Collect uniform/sampler definitions.

void	getVariableDefinitionList (std::string &definitionList, const std::vector< int > &indices, const std::string &prefix) const override
	Collect variable definitions.

int	setArguments (GL::Program &p, const std::vector< int > &indicesIn, const std::string &prefix) const override
	Set uniform/sampler arguments.

std::string	evalString (bool tagAndAssign=true) const override
	Implementation of GlExprInterface interface.

Public Member Functions inherited from GlExprInterface
ExprInterface &	exprInterface ()
	Get image descriptor of the wrapped expression.

const ExprInterface &	exprInterface () const

virtual bool	setMagFilter (ImageMath::MagFilter mag)
	Set interpolation behaviour of the current leaf (only)

virtual bool	setWrap (ImageMath::Wrap wrap)
	Set interpolation behaviour of the current leaf (only)

bool	setMagFilterRecursive (ImageMath::MagFilter mag)
	Set interpolation behaviour of the current leaf and all of its children.

bool	setWrapRecursive (ImageMath::Wrap wrap)
	Set wrap behaviour of the current leaf and all of its children.

Static Public Attributes
static constexpr bool	has_variable = OperandT::has_variable

Protected Attributes
int	m_numChannels

std::shared_ptr< Mask >	m_mask

std::shared_ptr< GL::MultiAbstractInclude< GlMask > >	m_multiInclude

internal::StashTpl< OperandT, StashVariable< double > >	m_stashedOperand

Protected Attributes inherited from MaskLeafGl
std::string	m_name = "uninitialized"

bool	m_tagged = false

std::shared_ptr< GL::MultiAbstractInclude< GlMask > >	m_multiInclude

Member Function Documentation

◆ numImgs()

template<typename OperandT>

int numImgs ( ) const

inlineoverridevirtual

Return number of images of this expression.

Implements ExprInterface.

◆ deviceStrategy()

template<typename OperandT>

DeviceStrategy deviceStrategy ( ) const

inlineoverridevirtual

Return DeviceStrategy of this expression.

Implements ExprInterface.

◆ imgDesc()

template<typename OperandT>

ImageDescriptor imgDesc ( ) const

inlineoverridevirtual

Return ImageDescriptor of this expression. This reference is expected to remain the same while the class exists.

Implements ExprInterface.

◆ children() [1/2]

template<typename OperandT>

std::vector< internal::GlExprInterface * > children ( )

inlineoverridevirtual

Used for traversing the expression tree. Contains the immediate children of node.

Implements GlExprInterface.

◆ children() [2/2]

template<typename OperandT>

std::vector< const internal::GlExprInterface * > children ( ) const

inlineoverridevirtual

Used for traversing the expression tree. Contains the immediate children of node.

Implements GlExprInterface.

◆ mask()

template<typename OperandT>

const std::shared_ptr< Mask > & mask ( ) const

inlineoverridevirtual

Implements MaskLeafBase.

◆ operand() [1/2]

template<typename OperandT>

internal::GlExprInterface & operand ( )

inlineoverridevirtual

Implements MaskLeafBase.

◆ operand() [2/2]

template<typename OperandT>

const internal::GlExprInterface & operand ( ) const

inlineoverridevirtual

Implements MaskLeafBase.

The documentation for this class was generated from the following file:

ImFusion/ImageMath/Tpl/MaskLeaf.h
