HistogramDataComponent Class Reference

#include <ImFusion/Base/HistogramDataComponent.h>

DataComponent storing information on the intensity distribution of the image they are attached to. More...

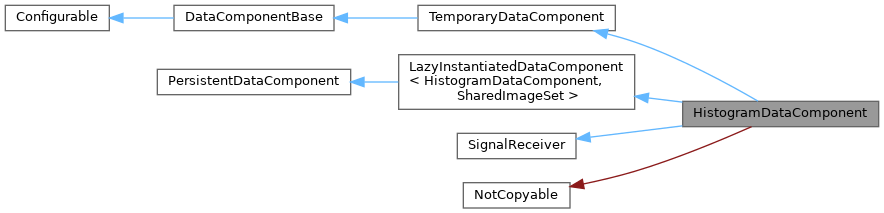

Inheritance diagram for HistogramDataComponent:

Detailed Description

DataComponent storing information on the intensity distribution of the image they are attached to.

You can use it to query the minimum/maximum intensity of an image as well as its intensity histogram. Most information is lazy-evaluated and cached. Thus, you can expect consecutive calls to minmax() and/or histogram() as being free as long as the corresponding image remains unchanged.

Example:

SharedImageSet sis = ...;

// query minimum/maximum value of the first image in storage domain
vec2 minmaxStorage = HistogramDataComponent::get(sis).minmax(0);

// query 16-bin intensity histogram of the first image for the intensity range of [0..100]
auto histogram = HistogramDataComponent::get(sis).derivedHistogram(0, 16, vec2(0, 100));

Note

HistogramDataComponent does not support serialization since it will always be lazy-instantiated during runtime.

See also

Image, Pixel Value Domains

Public Member Functions
	HistogramDataComponent (const SharedImageSet *sis)
	Creates a new HistogramDataComponent for the given SharedImageSet.
const SharedImage *	histogram (int index) const
	Returns the intensity histogram for the image with the given index not considering any masks.
std::unique_ptr< SharedImage >	histogramMaskWeighted (int index) const
	Returns the intensity histogram for the image with the given index while considering masks.
std::shared_ptr< const SharedImage >	derivedHistogram (int index, int numBins, const vec2 &intensityRange) const
	Returns the intensity histogram with the given parameters for image with the given index.
vec2	minmax () const
	Returns the accumulated minimum and maximum intensity of all images considering all channels.
vec2	minmax (int index) const
	Returns the minimum and maximum intensity of the image with the given index considering all channels.
vec2	minmaxNormalized () const
	Returns the minimum and maximum intensity of all images in the normalized intensity range as it is seen by GLSL shaders.
vec2	minmaxNormalized (int index) const
	Returns the minimum and maximum intensity of the image in the normalized intensity range as it is seen by GLSL shaders.
vec2	minmaxOriginal () const
	Returns the minimum and maximum intensity of all images in the original pixel values domain.
vec2	minmaxOriginal (int index) const
	Returns the minimum and maximum intensity of the image in the original pixel values domain.
int	maxNumBuckets (int index) const
	Returns the maximum number of buckets that makes sense for a histogram for the image with the given index.
vec2	computeAutoWindowing (double lowerLimit, double upperLimit, int index, bool considerMask=false) const
	Deduces optimal window/level (returned as vec2) settings the image with the given index based on its histogram.
vec2	computeAutoWindowingParameters (double window, double level, int index, bool considerMask=false) const
	Inverse computation of computeAutoWindowing.
Public Member Functions inherited from TemporaryDataComponent
std::string	id () const override
	Returns a unique string identifier for this type of data component.
std::unique_ptr< DataComponentBase >	clone () const override
	Creates a clone of this data component.
bool	assign (const DataComponentBase &) override
	Assigns the content of other to this data component.
bool	equals (const DataComponentBase &) const override
	Compares this data component to other for equality.
void	configure (const Properties *) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *) const override
	Serialize the current object configuration into the given Properties object.
Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept
Public Member Functions inherited from SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.

Additional Inherited Members
Static Public Member Functions inherited from LazyInstantiatedDataComponent< HistogramDataComponent, SharedImageSet >
static HistogramDataComponent &	get (const SharedImageSet &data)
	Returns the specific options of type T that are associated with the given data.
static HistogramDataComponent *	get (const SharedImageSet *data)
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Member Functions inherited from DataComponentBase
	DataComponentBase (const DataComponentBase &)=default
DataComponentBase &	operator= (const DataComponentBase &other)=default
Protected Member Functions inherited from SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Constructor & Destructor Documentation

HistogramDataComponent()

HistogramDataComponent ( const SharedImageSet * sis )

explicit

Creates a new HistogramDataComponent for the given SharedImageSet.

Parameters

data	Pointer to the SharedImageSet to compute histograms for.

Member Function Documentation

histogram()

const SharedImage * histogram

(

int

index

)

const

Returns the intensity histogram for the image with the given index not considering any masks.

The binning of the histogram is based on the image content. The min/max bin correspond to the min/max value of the underlying image (i.e. minmax()). The number of bins determined by maxNumBuckets().

Note

This histogram will be cached by HistogramDataComponent.

histogramMaskWeighted()

std::unique_ptr< SharedImage > histogramMaskWeighted

(

int

index

)

const

Returns the intensity histogram for the image with the given index while considering masks.

The binning of the histogram is based on the image content. The min/max bin correspond to the min/max value of the underlying image (i.e. minmax()). The number of bins determined by maxNumBuckets().

Note

Due to the volatility of the mask, the computed histogram can not be cached and will be recomputed every time it is requested.

derivedHistogram()

std::shared_ptr< const SharedImage > derivedHistogram	(	int	index,
		int	numBins,
		const vec2 &	intensityRange ) const

Returns the intensity histogram with the given parameters for image with the given index.

The histogram is derived from the original full range histogram.

Parameters

index	Index of the image to compute the histogram for.
numBins	Number of bins of the histogram to compute.
intensityRange	Intensity range of the histogram to compute in storage value domain.

Note

This histogram will be cached (in an LRU cache) by HistogramDataComponent.

minmax() [1/2]

vec2 minmax

(

)

const

Returns the accumulated minimum and maximum intensity of all images considering all channels.

Note

The returned intensities are in storage value domain as they are stored in the MemImage.

minmax() [2/2]

vec2 minmax

(

int

index

)

const

Returns the minimum and maximum intensity of the image with the given index considering all channels.

Note

The returned intensities are in storage value domain as they are stored in the MemImage.

minmaxNormalized() [1/2]

vec2 minmaxNormalized

(

)

const

Returns the minimum and maximum intensity of all images in the normalized intensity range as it is seen by GLSL shaders.

See also

GlUtils::storageToNormalized(), GlUtils::normalizedToStorage()

minmaxNormalized() [2/2]

vec2 minmaxNormalized

(

int

index

)

const

Returns the minimum and maximum intensity of the image in the normalized intensity range as it is seen by GLSL shaders.

See also

GlUtils::storageToNormalized(), GlUtils::normalizedToStorage()

minmaxOriginal() [1/2]

vec2 minmaxOriginal

(

)

const

Returns the minimum and maximum intensity of all images in the original pixel values domain.

See also

Image::storageToOriginal()

minmaxOriginal() [2/2]

vec2 minmaxOriginal

(

int

index

)

const

Returns the minimum and maximum intensity of the image in the original pixel values domain.

See also

Image::storageToOriginal()

maxNumBuckets()

int maxNumBuckets

(

int

index

)

const

Returns the maximum number of buckets that makes sense for a histogram for the image with the given index.

For discrete numeric type images this matches the distance between the min and max value. However, it will never exceed the maximum supported 1D texture size, which is also the number of bins used for float images.

computeAutoWindowing()

vec2 computeAutoWindowing	(	double	lowerLimit,
		double	upperLimit,
		int	index,
		bool	considerMask = false ) const

Deduces optimal window/level (returned as vec2) settings the image with the given index based on its histogram.

Parameters

lowerLimit	Percentage of lower values removed by the auto windowing.
upperLimit	Percentage of upper values removed by the auto windowing.
index	Index of the image to compute the auto windowing for.
considerMask	Flag whether to consider a mask attached to the image when computing the auto windowing.

computeAutoWindowingParameters()

vec2 computeAutoWindowingParameters	(	double	window,
		double	level,
		int	index,
		bool	considerMask = false ) const

Inverse computation of computeAutoWindowing.

Computes the needed lower/upper limit (returned as vec2) needed to deduce the auto windowing with the provided parameters.

Parameters

window	Window parameter to use.
level	Windowing level to use.
index	Index of the image to compute the inverse auto windowing for.
considerMask	Flag whether to consider a mask attached to the image when computing the inverse auto windowing.

---

The documentation for this class was generated from the following file:

• ImFusion/Base/HistogramDataComponent.h
