ImFusion::DataMatrixTransformer Class Reference

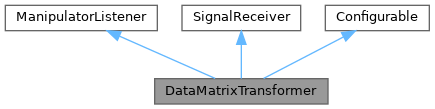

Inheritance diagram for ImFusion::DataMatrixTransformer:

Public Member Functions
	DataMatrixTransformer (Data *data)
virtual void	init (ImageView3D *view3D, bool visible)
void	reset ()
void	setMatrix (const isom3 &matrix)
bool	setVisibility (bool show)
virtual bool	show ()
virtual bool	hide ()
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.
Public Member Functions inherited from ImFusion::SignalReceiver
	SignalReceiver ()=default
	Default constructor.
	SignalReceiver (const SignalReceiver &other)
	Copy constructor, does not copy any existing signal connections from other.
SignalReceiver &	operator= (SignalReceiver rhs)
	Assignment operator, disconnects all existing connections, does not copy any existing signal connections from rhs.
virtual	~SignalReceiver ()
	Virtual destructor disconnects from all connected signals.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Protected Member Functions
void	onManipulatorEvent (Manipulator *src, void *eventData) override
	Called when an event occurs.
virtual void	onHoverEvent (TransformerManipulator *manipulator, TransformerManipulatorEvent *event)
virtual void	onStartEvent (TransformerManipulator *manipulator, TransformerManipulatorEvent *event)
virtual void	onMoveEvent (TransformerManipulator *manipulator, TransformerManipulatorEvent *event)
virtual void	onStopEvent (TransformerManipulator *manipulator, TransformerManipulatorEvent *event)
virtual std::unique_ptr< GlRotationTransformer >	createRing (int axis)
virtual std::unique_ptr< GlTranslationTransformer >	createArrow (int axis)
virtual std::unique_ptr< GlInPlaneTransformer >	createSphere ()
void	addTransformerObject (std::unique_ptr< GlTransformerObject > obj)
Protected Member Functions inherited from ImFusion::SignalReceiver
void	disconnectAll ()
	Disconnects all existing connections.

Protected Attributes
ImageView3D *	m_view = nullptr
std::vector< InteractiveObject * >	m_objects
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Member Function Documentation

configure()

void ImFusion::DataMatrixTransformer::configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also

configuration() for the inverse functionality

Reimplemented from ImFusion::Configurable.

configuration()

void ImFusion::DataMatrixTransformer::configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also

configure() for the inverse functionality

Reimplemented from ImFusion::Configurable.

onManipulatorEvent()

void ImFusion::DataMatrixTransformer::onManipulatorEvent ( Manipulator * src, void * eventData )

overrideprotectedvirtual

Called when an event occurs.

Parameters

src	source of the event
eventData	pointer to event data. Zero if no event data is provided.

Implements ImFusion::ManipulatorListener.

---

The documentation for this class was generated from the following file:

• ImFusion/GUI/DataMatrixTransformer.h
