#include <ImFusion/GL/CurvedViewPrimitive.h>

Interface for curved view primitives. More...

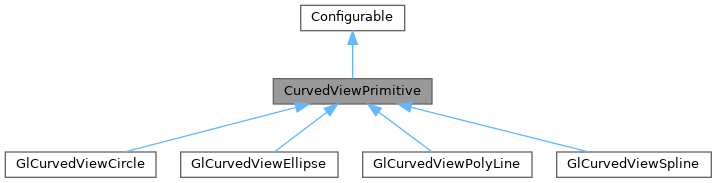

Inheritance diagram for ImFusion::CurvedViewPrimitive:

Detailed Description

Interface for curved view primitives.

Annotations which want to support rendering a curved MPR view of themselves must implement this interface. It provides generic methods which allow the panorama view to define the curved MPR trajectory inside a volume regardless of the details of the underlying annotation.

Public Member Functions
virtual void	evaluate (double t, vec3 &res) const =0
	Return a point on the primitive.
virtual void	evaluateNormal (double t, vec3 &res) const =0
	Evaluates primitive normal direction.
virtual void	evaluateTangent (double t, vec3 &res) const =0
	Evaluates primitive tangent direction.
vec3	yDir () const
	Get the y-direction of the primitive The y-direction is defined as the normal of the plane in which the primitive is located.
virtual void	updateYDir ()=0
	Update the normal of the primitive.
void	overrideCurvedSliceYDir (const vec3 &yDir, bool forcedYDir=true)
bool	forcedYDir (vec3 &yDirOut) const
void	updateCurveHeight (const SharedImageSet *imgSet)
	Update height of the primitive.
virtual double	getCurveLength () const =0
	Get the length of the primitive.
virtual double	coordToArcLength (double t) const =0
virtual double	arcLengthToCoord (double length) const =0
virtual void	getUniformSamples (std::vector< std::pair< double, vec3 > > &samples, int n) const =0
	Get the sample points of the primitive.
virtual double	calculateNearestPointCoord (const vec3 &pos) const =0
	Calculates the curve parameter t of the point nearest to pos.
virtual bool	isClosed () const =0
	Returns true if the curve is closed (i.e. first point is at the same position as the last point).
double	curveHeight () const
void	configure (const Properties *p) override
	Set one or multiple properties.
void	configuration (Properties *p) const override
	Retrieve the properties of this object.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Public Attributes
Signal	signalGeometryChanged
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Protected Member Functions
Geometry::AlignedBox	extendBounds (const Geometry::AlignedBox &b) const

Protected Attributes
vec3	m_yDir = vec3(0, 0, 1)
std::optional< vec3 >	m_forcedYDir
double	m_curveHeight = 0.0
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Function Documentation

◆ evaluate()

virtual void ImFusion::CurvedViewPrimitive::evaluate	(	double	t,
		vec3 &	res ) const

pure virtual

Return a point on the primitive.

The primitive is parametrized in the range t = [0;1] which linearly maps to the entire length of the primitive.

Parameters

t	curve parameter
res	position at t (output parameter)

Implemented in ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, and ImFusion::GlCurvedViewSpline.

◆ evaluateNormal()

virtual void ImFusion::CurvedViewPrimitive::evaluateNormal	(	double	t,
		vec3 &	res ) const

pure virtual

Evaluates primitive normal direction.

The curve is parametrized in the range t = [0;1]

Parameters

t	curve parameter
res	normalized normal direction at t (output parameter)

Implemented in ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, and ImFusion::GlCurvedViewSpline.

◆ evaluateTangent()

virtual void ImFusion::CurvedViewPrimitive::evaluateTangent	(	double	t,
		vec3 &	res ) const

pure virtual

Evaluates primitive tangent direction.

The curve is parametrized in the range t = [0;1]

Parameters

t	curve parameter
res	normalized tangent direction at t (output parameter)

Implemented in ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, and ImFusion::GlCurvedViewSpline.

◆ yDir()

vec3 ImFusion::CurvedViewPrimitive::yDir ( ) const

Get the y-direction of the primitive The y-direction is defined as the normal of the plane in which the primitive is located.

Warning: : this will in general correspond to the y-coordinate in the curved view, not the normal to the curved view.

◆ updateYDir()

virtual void ImFusion::CurvedViewPrimitive::updateYDir ( )

pure virtual

Update the normal of the primitive.

Implemented in ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, and ImFusion::GlCurvedViewSpline.

◆ getCurveLength()

virtual double ImFusion::CurvedViewPrimitive::getCurveLength ( ) const

pure virtual

Get the length of the primitive.

Implemented in ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, and ImFusion::GlCurvedViewSpline.

◆ getUniformSamples()

virtual void ImFusion::CurvedViewPrimitive::getUniformSamples	(	std::vector< std::pair< double, vec3 > > &	samples,
		int	n ) const

pure virtual

Get the sample points of the primitive.

Implemented in ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, and ImFusion::GlCurvedViewSpline.

◆ calculateNearestPointCoord()

virtual double ImFusion::CurvedViewPrimitive::calculateNearestPointCoord ( const vec3 & pos ) const

pure virtual

Calculates the curve parameter t of the point nearest to pos.

First the nearest point to pos on the curve is determined and the parameter t from the start of the curve to this point returned.

Parameters

pos	worldspace position of a point on the view

Implemented in ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, and ImFusion::GlCurvedViewSpline.

◆ isClosed()

virtual bool ImFusion::CurvedViewPrimitive::isClosed ( ) const

pure virtual

Returns true if the curve is closed (i.e. first point is at the same position as the last point).

Implemented in ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, and ImFusion::GlCurvedViewSpline.

◆ configure()

void ImFusion::CurvedViewPrimitive::configure ( const Properties * p )

overridevirtual

Set one or multiple properties.

Reimplemented from ImFusion::Configurable.

Reimplemented in ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, and ImFusion::GlCurvedViewSpline.

◆ configuration()

void ImFusion::CurvedViewPrimitive::configuration ( Properties * p ) const

overridevirtual

Retrieve the properties of this object.

Reimplemented from ImFusion::Configurable.

Reimplemented in ImFusion::GlCurvedViewCircle, ImFusion::GlCurvedViewEllipse, ImFusion::GlCurvedViewPolyLine, and ImFusion::GlCurvedViewSpline.

The documentation for this class was generated from the following file:

ImFusion/GL/CurvedViewPrimitive.h
