Detailed Description

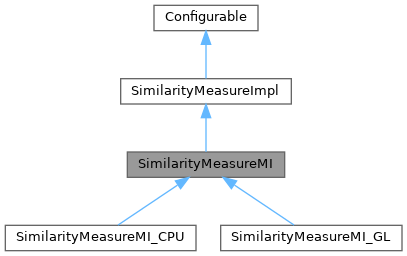

Computes the Mutual Information of two images.

The marginal entropies of both images are determined by computing the histogram of the images. The number of bins used for these histograms can be set with image1Bins and image2Bins properties. The joint entropy is determined by computing the 2D joint histogram, with image1JointBins in one direction and image2JointBins in the other direction.

If the number of bins does not correspond to the value range of the data type, the bin for each value is determined by:

bin = round((value-min)/(max-min) * (bins-1))

For 8- and 16-bit, the min value is 0 and the max value 256 and 65536 respectively. All other types use the actual min and max value in the image.

See also:

Public Member Functions
	SimilarityMeasureMI (SharedImage img1, SharedImage img2)

void	setImage1Bins (int bins)
	Sets the number of bins the first images histogram.

int	image1Bins () const

void	setImage2Bins (int bins)
	Sets the number of bins the second images histogram.

int	image2Bins () const

SharedImage *	histogramJoint ()
	Returns the joint histogram of both images.

void	configure (const Properties *p) override
	Set one or multiple properties.

void	configuration (Properties *p) const override
	Retrieve the properties of this object.

double	computeEntropy (const TypedImage< unsigned int > &histogram) const
	Computes the Shanon entropy using the histogram.

bool	supportsWeights () const override
	Queries the capability whether this similarity measure supports pixel-wise weights.

Public Member Functions inherited from SimilarityMeasureImpl
	SimilarityMeasureImpl (SharedImage img1, SharedImage img2)
	Sets the two images that should be compared. Does not transfer ownership.

virtual bool	setImage1 (SharedImage *img1)
	Replaces the image1 that was set in the constructor with the given image.

virtual bool	setImage2 (SharedImage *img2)
	Replaces the image2 that was set in the constructor with the given image.

virtual SharedImage *	image1 () const

virtual SharedImage *	image2 () const

void	enableImage1Mask (bool enable)
	Specify whether a mask on the first image shall be used if available (true by default)

void	enableImage2Mask (bool enable)
	Specify whether a mask on the second image shall be used if available (true by default)

virtual double	compute (const ImageTransformer t, size_t overlap=nullptr)=0
	Computes and returns the similarity measure.

virtual void	setWeights (const SharedImage weights1, const SharedImage weights2)
	Sets the images to use as weights for the similarity metric.

bool	image1MaskEnabled () const
	Return the flag for using the mask of the first image.

bool	image2MaskEnabled () const
	Return the flag for using the mask of the second image.

Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.

void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().

void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.

	Configurable (const Configurable &rhs)

	Configurable (Configurable &&rhs) noexcept

Configurable &	operator= (const Configurable &)

Configurable &	operator= (Configurable &&) noexcept

Static Public Member Functions
static void	defaultConfiguration (Properties *p)

Static Public Member Functions inherited from SimilarityMeasureImpl
static void	defaultConfiguration (Properties *p)
	Retrieve the default properties of this class.

Protected Member Functions
virtual void	updateHistogramSize ()=0

void	createDebugTexture ()

void	updateRanges () const
	Extracts the value range of the images and sets the m_img1_range and m_img2_range values.

Protected Member Functions inherited from SimilarityMeasureImpl
template<typename T>
double	callTyped (T obj, const MemImage &img1, const MemImage &img2, const ImageTransformer t, size_t *overlap=nullptr)
	Helper method to transform the MemImages to TypedImages.

void	setMaskIncludeArguments (GL::Program *program)
	Sets all uniforms for SimilarityMeasureMask.glh.

void	initMaskInclude (GL::Program *program)
	Initializes the code for the SimilarityMeasureMask.glh code.

std::string	glDefines (bool patchBased) const
	Return shared GL program defines for patch-based and weights, used in LNCC and LC2 OpenGL subclasses.

Protected Attributes
int	m_bins1

int	m_bins2

SharedImage *	m_histogramJoint

bool	m_exportJointHistogram

std::optional< std::pair< double, double > >	m_img1Range
	Value range of the first image.

std::optional< std::pair< double, double > >	m_img2Range
	Value range of the second image.

Protected Attributes inherited from SimilarityMeasureImpl
SharedImage *	m_img1

SharedImage *	m_img2

bool	m_useImg1Mask

bool	m_useImg2Mask

std::shared_ptr< GlMask::MultiIncludeType >	m_maskImg1

std::shared_ptr< GlMask::MultiIncludeType >	m_maskImg2

const SharedImage *	m_weights1

const SharedImage *	m_weights2

Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' `signalValueChanged` signal was emitted.

Member Function Documentation

◆ histogramJoint()

SharedImage * histogramJoint ( )

Returns the joint histogram of both images.

The joint histogram is empty before compute is called.

◆ configure()

void configure ( const Properties * p )

overridevirtual

Set one or multiple properties.

The default implementation retrieves the mask mode (param names "maskModeImg1" and "maskModeImg2")

Reimplemented from SimilarityMeasureImpl.

◆ configuration()

void configuration ( Properties * p ) const

overridevirtual

Retrieve the properties of this object.

The default implementation stores the mask mode (param names "maskModeImg1" and "maskModeImg2")

Reimplemented from SimilarityMeasureImpl.

◆ supportsWeights()

bool supportsWeights ( ) const

inlineoverridevirtual

Queries the capability whether this similarity measure supports pixel-wise weights.

Implements SimilarityMeasureImpl.

◆ updateRanges()

void updateRanges ( ) const

protected

Extracts the value range of the images and sets the m_img1_range and m_img2_range values.

Calling this in the constructor may not be enough as the image data can be written after the construction depending on the pre-apply flag.

The documentation for this class was generated from the following file:

ImFusion/Reg/SimilarityMeasureMI.h
