SimilarityMeasureLC2 Class Reference

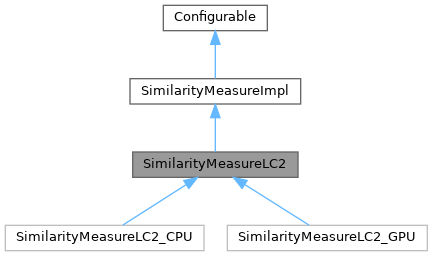

Inheritance diagram for SimilarityMeasureLC2:

Public Member Functions
	SimilarityMeasureLC2 (SharedImage *img1, SharedImage *img2)
void	setPatchSize (int p)
int	patchSize () const
void	configure (const Properties *p) override
	Set one or multiple properties.
void	configuration (Properties *p) const override
	Retrieve the properties of this object.
Public Member Functions inherited from SimilarityMeasureImpl
	SimilarityMeasureImpl (SharedImage *img1, SharedImage *img2)
	Sets the two images that should be compared. Does not transfer ownership.
virtual bool	setImage1 (SharedImage *img1)
	Replaces the image1 that was set in the constructor with the given image.
virtual bool	setImage2 (SharedImage *img2)
	Replaces the image2 that was set in the constructor with the given image.
virtual SharedImage *	image1 () const
virtual SharedImage *	image2 () const
void	enableImage1Mask (bool enable)
	Specify whether a mask on the first image shall be used if available (true by default)
void	enableImage2Mask (bool enable)
	Specify whether a mask on the second image shall be used if available (true by default)
virtual double	compute (const ImageTransformer *t, size_t *overlap=nullptr)=0
	Computes and returns the similarity measure.
virtual bool	supportsWeights () const =0
	Queries the capability whether this similarity measure supports pixel-wise weights.
virtual void	setWeights (const SharedImage *weights1, const SharedImage *weights2)
	Sets the images to use as weights for the similarity metric.
bool	image1MaskEnabled () const
	Return the flag for using the mask of the first image.
bool	image2MaskEnabled () const
	Return the flag for using the mask of the second image.
Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Static Public Member Functions
static void	defaultConfiguration (Properties *p)
Static Public Member Functions inherited from SimilarityMeasureImpl
static void	defaultConfiguration (Properties *p)
	Retrieve the default properties of this class.

Protected Member Functions
void	checkPatchsizeAndSpacing ()
Protected Member Functions inherited from SimilarityMeasureImpl
template<typename T>
double	callTyped (T *obj, const MemImage &img1, const MemImage &img2, const ImageTransformer *t, size_t *overlap=nullptr)
	Helper method to transform the MemImages to TypedImages.
void	setMaskIncludeArguments (GL::Program *program)
	Sets all uniforms for SimilarityMeasureMask.glh.
void	initMaskInclude (GL::Program *program)
	Initializes the code for the SimilarityMeasureMask.glh code.
std::string	glDefines (bool patchBased) const
	Return shared GL program defines for patch-based and weights, used in LNCC and LC2 OpenGL subclasses.

Protected Attributes
int	m_patchSize
Protected Attributes inherited from SimilarityMeasureImpl
SharedImage *	m_img1
SharedImage *	m_img2
bool	m_useImg1Mask
bool	m_useImg2Mask
std::shared_ptr< GlMask::MultiIncludeType >	m_maskImg1
std::shared_ptr< GlMask::MultiIncludeType >	m_maskImg2
const SharedImage *	m_weights1
const SharedImage *	m_weights2
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Additional Inherited Members
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Member Function Documentation

configure()

void configure ( const Properties * p )

overridevirtual

Set one or multiple properties.

The default implementation retrieves the mask mode (param names "maskModeImg1" and "maskModeImg2")

Reimplemented from SimilarityMeasureImpl.

configuration()

void configuration ( Properties * p ) const

overridevirtual

Retrieve the properties of this object.

The default implementation stores the mask mode (param names "maskModeImg1" and "maskModeImg2")

Reimplemented from SimilarityMeasureImpl.

---

The documentation for this class was generated from the following file:

• ImFusion/Reg/SimilarityMeasureLC2.h
