Detailed Description

template<typename ConditionT, typename LhsT, typename RhsT>
class ImFusion::ImageMath::internal::SelectTpl< ConditionT, LhsT, RhsT >

Specialization of ExprBaseTpl for ternary (condition ?

case_true : case_false) operators using template optimization

Template Parameters

ConditionT	The first component of this expression is used to determine whether to return lhs or rhs.
LhsT	The expression that is returned if condition is true
RhsT	The expression that is returned if condition is false

Please note that in addition to the CPU operator() method this also provides the evalString() method which will be used to formulate the expression in e.g. a GLSL shader.

Public Types
using	expr_type = typename common_type<typename LhsT::expr_type, typename RhsT::expr_type>::type

using	var_type

using	imf_img_type

Public Member Functions
	SelectTpl (const ConditionT &condition, const LhsT &lhs, const RhsT &rhs)
	Constructor storing the left-hand and the right-hand side for later lazy evaluation.

template<typename ImgT>
auto	convertToMemImgExpr () const noexcept

auto	convertToSharedImgExpr (std::size_t index) const

template<typename SubOperandT>
auto	substituteVariable (const SubOperandT &operand) const
	Substitutes any Variable leaf.

template<typename LhsExprT = typename LhsT::expr_type, typename RhsExprT = typename RhsT::expr_type, typename ConditionExprT = typename ConditionT::expr_type>
IMFUSION_STRONG_INLINE expr_type	eval (const std::size_t i, const vec4i &coord) const
	Evaluate the expression at position i.

DeviceStrategy	deviceStrategy () const override
	Return DeviceStrategy of this expression.

ImageDescriptor	imgDesc () const override
	get image descriptor

int	numImgs () const override
	Get number of images.

GlExprInterface &	lhs () override

const GlExprInterface &	lhs () const override

GlExprInterface &	rhs () override

const GlExprInterface &	rhs () const override

GlExprInterface &	condition () override

const GlExprInterface &	condition () const override

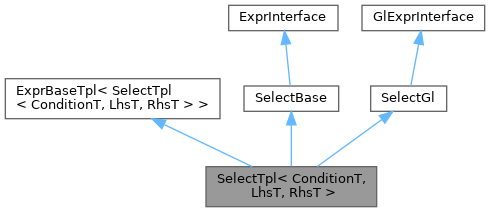

Public Member Functions inherited from ExprBaseTpl< SelectTpl< ConditionT, LhsT, RhsT > >
const auto &	get () const
	get a const reference to this with the actual type

auto &	get ()
	get a reference to this with the actual type

auto	polyWrapper () const

auto	uniquePolyWrapper () const

auto	sharedPolyWrapper () const

auto	binaryOp (const ExprBaseTpl< RhsT > &rhs, const Op &func=Op()) const

auto	binaryOp (RhsT rhs, const Op &func=Op(), typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (Eigen::Matrix< RhsT, Dim, 1, Options, MaxRows, MaxCols > rhs, const Op &func=Op(), typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (const ExprBaseTpl< RhsT > &rhs, const Op &func, const StringOp &stringFunc) const

auto	binaryOp (RhsT rhs, const Op &func, const StringOp &stringFunc, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (Eigen::Matrix< RhsT, Dim, 1, Options, MaxRows, MaxCols > rhs, const Op &func, const StringOp &stringFunc, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	unaryOp (const Op &func=Op()) const

auto	unaryOp (const Op &func, const StringOp &stringFunc) const

reduction_type	reduce (std::vector< vec4i > *arg=nullptr) const

auto	forceCPU () const
	Forces CPU execution.

auto	forceGPU () const
	Forces GPU execution.

auto	channelSwizzle (const std::vector< std::size_t > &indices) const

auto	head ()

	ADD_SPECIAL_SWIZZLE (x, {0})

	ADD_SPECIAL_SWIZZLE (y, {1})

	ADD_SPECIAL_SWIZZLE (z, {2})

	ADD_SPECIAL_SWIZZLE (w, {3})

	ADD_SPECIAL_SWIZZLE (r, {0})

	ADD_SPECIAL_SWIZZLE (g, {1})

	ADD_SPECIAL_SWIZZLE (b, {2})

	ADD_SPECIAL_SWIZZLE (a, {3})

	ADD_SPECIAL_SWIZZLE (xy, std::vector< size_t >({0, 1}))

	ADD_SPECIAL_SWIZZLE (rg, std::vector< size_t >({0, 1}))

	ADD_SPECIAL_SWIZZLE (xyz, std::vector< size_t >({0, 1, 2}))

	ADD_SPECIAL_SWIZZLE (xyzw, std::vector< size_t >({0, 1, 2, 3}))

	ADD_SPECIAL_SWIZZLE (rgb, std::vector< size_t >({0, 1, 2}))

	ADD_SPECIAL_SWIZZLE (rgba, std::vector< size_t >({0, 1, 2, 3}))

auto	streamChannels (int numStreamedChannels) const

auto	substituteVariableWithImg (T &img) const

auto	operator- () const

auto	cast () const

auto	storageToOriginal (const ImageDescriptor &desc)
	Apply shift/scale to the operand,.

auto	originalToStorage (const ImageDescriptor &desc)
	Apply shift/scale to the operand,.

auto	channelReduction ()

	ADD_CHANNEL_REDUCTION_OPERATOR (channelSum, add)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelProd, mult)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelMax, max)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelMin, min)

	ADD_CHANNEL_REDUCTION_OPERATOR (length, length)

auto	channelMean ()

auto	squaredLength () const

auto	channelDistance (const ExprBaseTpl< RhsT > &other) const

auto	channelDistance (const Eigen::Matrix< T, Dim, 1 > c)

auto	dot (const ExprBaseTpl< RhsT > &other) const

auto	stashThenApply (const ExprBaseTpl< VariableT > &varExpr) const

auto	hnormalized () const

auto	normalized () const

auto	homogeneous () const

auto	appendZero () const

auto	select (const ExprBaseTpl< LhsT > &lhs, const ExprBaseTpl< RhsT > &rhs) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (LhsT lhs, RhsT rhs, typename std::enable_if< std::is_arithmetic_v< LhsT > &&std::is_arithmetic_v< RhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (LhsT lhs, const ExprBaseTpl< RhsT > &rhs, typename std::enable_if< std::is_arithmetic_v< LhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (const ExprBaseTpl< LhsT > &lhs, RhsT rhs, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

	ADD_REDUCTION_OPERATOR (sum, add)

	ADD_REDUCTION_OPERATOR (prod, mult)

	ADD_ARG_REDUCTION_OPERATOR (min, min)

	ADD_ARG_REDUCTION_OPERATOR (max, max)

Eigen::Matrix< double, Eigen::Dynamic, 1 >	mean () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l1Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	squaredl2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lpNorm (double p) const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lInfNorm () const

auto	evaluateIntoImage (bool clearShiftScale=false) const
	Create an empty image and evaluate this expression into it.

auto	toMask () const

auto	toDeformation (const ImageDescriptorWorld imgDesc) const

auto	resample (const ImageDescriptorWorld &inputDesc, const ImageDescriptorWorld &outputDesc) const

auto	resample (SharedImage &inputDesc, SharedImage &outputDesc, std::enable_if_t< std::is_same_v< T, SharedImage > > *=nullptr) const

auto	resample (SharedImageSet &inputDesc, SharedImageSet &outputDesc, std::enable_if_t< std::is_same_v< T, SharedImageSet > > *=nullptr) const

Public Member Functions inherited from SelectGl
std::string	evalString (bool tagAndAssign=true) const override
	Print expression.

void	tagAndAssignNames (std::unordered_map< internal::TaggingIndex, const void * > &taggedLeaves, std::unordered_map< std::type_index, int > &countPerLeafType, const std::string &prefix) const override
	We need to tag leaves and tell unique leaves that they are responsible to define the uniforms and set the shader arguments.

void	getUniformDefinitionList (std::string &definitionList, const std::vector< int > &indices, const std::string &prefix) const override
	Collect uniform/sampler definitions.

void	getVariableDefinitionList (std::string &definitionList, const std::vector< int > &indices, const std::string &prefix) const override
	Collect variable definitions.

int	setArguments (GL::Program &p, const std::vector< int > &indices, const std::string &prefix) const override
	Set uniform/sampler arguments.

std::vector< internal::GlExprInterface * >	children () override
	Used for traversing the expression tree. Contains the immediate children of node.

std::vector< const internal::GlExprInterface * >	children () const override
	Used for traversing the expression tree. Contains the immediate children of node.

Public Member Functions inherited from GlExprInterface
ExprInterface &	exprInterface ()
	Get image descriptor of the wrapped expression.

const ExprInterface &	exprInterface () const

virtual bool	setMagFilter (ImageMath::MagFilter mag)
	Set interpolation behaviour of the current leaf (only)

virtual bool	setWrap (ImageMath::Wrap wrap)
	Set interpolation behaviour of the current leaf (only)

bool	setMagFilterRecursive (ImageMath::MagFilter mag)
	Set interpolation behaviour of the current leaf and all of its children.

bool	setWrapRecursive (ImageMath::Wrap wrap)
	Set wrap behaviour of the current leaf and all of its children.

Static Public Attributes
static constexpr bool	has_variable = internal::any_true<LhsT::has_variable, RhsT::has_variable, ConditionT::has_variable>
