#include <ImFusion/ImageMath/Tpl/StringLeaf.h>

Specialization of ExprBaseTpl for a simple leaf representing a string. More...

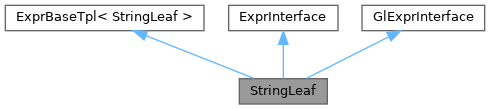

Inheritance diagram for StringLeaf:

Detailed Description

Specialization of ExprBaseTpl for a simple leaf representing a string.

This leaf can be used to generate GLSL code using ImageMath

Public Types
using	expr_type = double

using	var_type = void

using	imf_img_type = void

Public Member Functions
	StringLeaf (std::string name, int channels=1)

std::string	evalString (bool tagAndAssign=true) const override
	Print expression.

void	tagAndAssignNames (std::unordered_map< internal::TaggingIndex, const void * > &taggedLeaves, std::unordered_map< std::type_index, int > &countPerLeafType, const std::string &prefix) const override
	We need to tag leaves and tell unique leaves that they are responsible to define the uniforms and set the shader arguments.

void	getUniformDefinitionList (std::string &definitionList, const std::vector< int > &indices, const std::string &prefix) const override
	Collect uniform/sampler definitions.

void	getVariableDefinitionList (std::string &definitionList, const std::vector< int > &indices, const std::string &prefix) const override
	Collect variable definitions.

int	setArguments (GL::Program &p, const std::vector< int > &indices, const std::string &prefix) const override
	Set uniform/sampler arguments.

int	numImgs () const override
	Return number of images of this expression.

ImageDescriptor	imgDesc () const override
	Return ImageDescriptor of this expression. This reference is expected to remain the same while the class exists.

ImageMath::DeviceStrategy	deviceStrategy () const override
	Return DeviceStrategy of this expression.

std::vector< internal::GlExprInterface * >	children () override
	Used for traversing the expression tree. Contains the immediate children of node.

std::vector< const internal::GlExprInterface * >	children () const override
	Used for traversing the expression tree. Contains the immediate children of node.

Public Member Functions inherited from ExprBaseTpl< StringLeaf >
const auto &	get () const
	get a const reference to this with the actual type

auto &	get ()
	get a reference to this with the actual type

auto	polyWrapper () const

auto	uniquePolyWrapper () const

auto	sharedPolyWrapper () const

auto	binaryOp (const ExprBaseTpl< RhsT > &rhs, const Op &func=Op()) const

auto	binaryOp (RhsT rhs, const Op &func=Op(), typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (Eigen::Matrix< RhsT, Dim, 1, Options, MaxRows, MaxCols > rhs, const Op &func=Op(), typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (const ExprBaseTpl< RhsT > &rhs, const Op &func, const StringOp &stringFunc) const

auto	binaryOp (RhsT rhs, const Op &func, const StringOp &stringFunc, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	binaryOp (Eigen::Matrix< RhsT, Dim, 1, Options, MaxRows, MaxCols > rhs, const Op &func, const StringOp &stringFunc, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const

auto	unaryOp (const Op &func=Op()) const

auto	unaryOp (const Op &func, const StringOp &stringFunc) const

reduction_type	reduce (std::vector< vec4i > *arg=nullptr) const

auto	forceCPU () const
	Forces CPU execution.

auto	forceGPU () const
	Forces GPU execution.

auto	channelSwizzle (const std::vector< std::size_t > &indices) const

auto	head ()

	ADD_SPECIAL_SWIZZLE (x, {0})

	ADD_SPECIAL_SWIZZLE (y, {1})

	ADD_SPECIAL_SWIZZLE (z, {2})

	ADD_SPECIAL_SWIZZLE (w, {3})

	ADD_SPECIAL_SWIZZLE (r, {0})

	ADD_SPECIAL_SWIZZLE (g, {1})

	ADD_SPECIAL_SWIZZLE (b, {2})

	ADD_SPECIAL_SWIZZLE (a, {3})

	ADD_SPECIAL_SWIZZLE (xy, std::vector< size_t >({0, 1}))

	ADD_SPECIAL_SWIZZLE (rg, std::vector< size_t >({0, 1}))

	ADD_SPECIAL_SWIZZLE (xyz, std::vector< size_t >({0, 1, 2}))

	ADD_SPECIAL_SWIZZLE (xyzw, std::vector< size_t >({0, 1, 2, 3}))

	ADD_SPECIAL_SWIZZLE (rgb, std::vector< size_t >({0, 1, 2}))

	ADD_SPECIAL_SWIZZLE (rgba, std::vector< size_t >({0, 1, 2, 3}))

auto	streamChannels (int numStreamedChannels) const

auto	substituteVariableWithImg (T &img) const

auto	operator- () const

auto	cast () const

auto	storageToOriginal (const ImageDescriptor &desc)
	Apply shift/scale to the operand,.

auto	originalToStorage (const ImageDescriptor &desc)
	Apply shift/scale to the operand,.

auto	channelReduction ()

	ADD_CHANNEL_REDUCTION_OPERATOR (channelSum, add)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelProd, mult)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelMax, max)

	ADD_CHANNEL_REDUCTION_OPERATOR (channelMin, min)

	ADD_CHANNEL_REDUCTION_OPERATOR (length, length)

auto	channelMean ()

auto	squaredLength () const

auto	channelDistance (const ExprBaseTpl< RhsT > &other) const

auto	channelDistance (const Eigen::Matrix< T, Dim, 1 > c)

auto	dot (const ExprBaseTpl< RhsT > &other) const

auto	stashThenApply (const ExprBaseTpl< VariableT > &varExpr) const

auto	hnormalized () const

auto	normalized () const

auto	homogeneous () const

auto	appendZero () const

auto	select (const ExprBaseTpl< LhsT > &lhs, const ExprBaseTpl< RhsT > &rhs) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (LhsT lhs, RhsT rhs, typename std::enable_if< std::is_arithmetic_v< LhsT > &&std::is_arithmetic_v< RhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (LhsT lhs, const ExprBaseTpl< RhsT > &rhs, typename std::enable_if< std::is_arithmetic_v< LhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

auto	select (const ExprBaseTpl< LhsT > &lhs, RhsT rhs, typename std::enable_if< std::is_arithmetic_v< RhsT > >::type *=nullptr) const
	Ternary (condition.x ? if_true : if_false) operator.

	ADD_REDUCTION_OPERATOR (sum, add)

	ADD_REDUCTION_OPERATOR (prod, mult)

	ADD_ARG_REDUCTION_OPERATOR (min, min)

	ADD_ARG_REDUCTION_OPERATOR (max, max)

Eigen::Matrix< double, Eigen::Dynamic, 1 >	mean () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l1Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	squaredl2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	l2Norm () const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lpNorm (double p) const

Eigen::Matrix< double, Eigen::Dynamic, 1 >	lInfNorm () const

auto	evaluateIntoImage (bool clearShiftScale=false) const
	Create an empty image and evaluate this expression into it.

auto	toMask () const

auto	toDeformation (const ImageDescriptorWorld imgDesc) const

auto	resample (const ImageDescriptorWorld &inputDesc, const ImageDescriptorWorld &outputDesc) const

auto	resample (SharedImage &inputDesc, SharedImage &outputDesc, std::enable_if_t< std::is_same_v< T, SharedImage > > *=nullptr) const

auto	resample (SharedImageSet &inputDesc, SharedImageSet &outputDesc, std::enable_if_t< std::is_same_v< T, SharedImageSet > > *=nullptr) const

Public Member Functions inherited from GlExprInterface
ExprInterface &	exprInterface ()
	Get image descriptor of the wrapped expression.

const ExprInterface &	exprInterface () const

virtual bool	setMagFilter (ImageMath::MagFilter mag)
	Set interpolation behaviour of the current leaf (only)

virtual bool	setWrap (ImageMath::Wrap wrap)
	Set interpolation behaviour of the current leaf (only)

bool	setMagFilterRecursive (ImageMath::MagFilter mag)
	Set interpolation behaviour of the current leaf and all of its children.

bool	setWrapRecursive (ImageMath::Wrap wrap)
	Set wrap behaviour of the current leaf and all of its children.

Static Public Attributes
static constexpr bool	has_variable = false

Member Function Documentation

◆ evalString()

std::string evalString ( bool tagAndAssign = true ) const

inlineoverridevirtual

Print expression.

Implements GlExprInterface.

◆ tagAndAssignNames()

void tagAndAssignNames	(	std::unordered_map< internal::TaggingIndex, const void * > &	taggedLeaves,
		std::unordered_map< std::type_index, int > &	countPerLeafType,
		const std::string &	prefix ) const

inlineoverridevirtual

We need to tag leaves and tell unique leaves that they are responsible to define the uniforms and set the shader arguments.

The names for uniforms and variables will also be assigned during this stage

Implements GlExprInterface.

◆ getUniformDefinitionList()

void getUniformDefinitionList	(	std::string &	definitionList,
		const std::vector< int > &	indices,
		const std::string &	prefix ) const

inlineoverridevirtual

Collect uniform/sampler definitions.

Implements GlExprInterface.

◆ getVariableDefinitionList()

void getVariableDefinitionList	(	std::string &	definitionList,
		const std::vector< int > &	indices,
		const std::string &	prefix ) const

inlineoverridevirtual

Collect variable definitions.

Implements GlExprInterface.

◆ setArguments()

int setArguments	(	GL::Program &	p,
		const std::vector< int > &	indices,
		const std::string &	prefix ) const

inlineoverridevirtual

Set uniform/sampler arguments.

Implements GlExprInterface.

◆ numImgs()

int numImgs ( ) const

inlineoverridevirtual

Return number of images of this expression.

Implements ExprInterface.

◆ imgDesc()

ImageDescriptor imgDesc ( ) const

inlineoverridevirtual

Return ImageDescriptor of this expression. This reference is expected to remain the same while the class exists.

Implements ExprInterface.

◆ deviceStrategy()

ImageMath::DeviceStrategy deviceStrategy ( ) const

inlineoverridevirtual

Return DeviceStrategy of this expression.

Implements ExprInterface.

◆ children() [1/2]

std::vector< internal::GlExprInterface * > children ( )

inlineoverridevirtual

Used for traversing the expression tree. Contains the immediate children of node.

Implements GlExprInterface.

◆ children() [2/2]

std::vector< const internal::GlExprInterface * > children ( ) const

inlineoverridevirtual

Used for traversing the expression tree. Contains the immediate children of node.

Implements GlExprInterface.

The documentation for this class was generated from the following file:

ImFusion/ImageMath/Tpl/StringLeaf.h
