#include <ImFusion/Stream/IGTL/DataDevice.h>

Base class for Igtlink devices that receive/send single data (and not data streams) More...

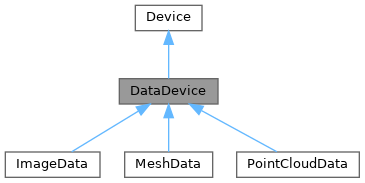

Inheritance diagram for DataDevice:

Detailed Description

Base class for Igtlink devices that receive/send single data (and not data streams)

Public Member Functions
	DataDevice (IGTL::Connection &con, const std::string &deviceName, const Type &iglType, const std::vector< Type > &compatibleIgtlTypes, bool cloneData=false)
	Constructor.

virtual bool	sendData (Data *inputData) const =0

Public Member Functions inherited from Device
	Device (Connection *connection, std::string name, Type igtlType, const std::vector< Type > &compatibleIgtlTypes={})

	Device (const Device &other)

Device &	operator= (const Device &other)

	Device (Device &&other) noexcept

Device &	operator= (Device &&other) noexcept

Type	deviceIgtlType () const
	Gets the device type.

std::string	deviceName () const
	Gets the device Name.

std::vector< Type >	compatibleIgtlTypes () const
	Returns the IgtlTypes compatible with the device.

bool	isCompatible (const Type &type) const
	returns true if the device is compatible (i.e. can parse/process) the passed Type

bool	isConnected () const
	returns true if the connection associated to the device is valid.

void	resetConnection ()
	Reset the connection to nullptr. The method can be called e.g. before the connection data is deleted.

Protected Attributes
bool	m_cloneData

Protected Attributes inherited from Device
std::vector< Type >	m_compatibleIgtlTypes

Type	m_iglType
	The igl types that are supported by this device for conversion from/to ImFusion data.

std::string	m_deviceName
	Data type of the device.

Connection *	m_iglConnection
	Device name assigned to this device.

std::unique_ptr< DeviceImpl >	m_impl
	Igl Connection Object.

Additional Inherited Members
Public Types inherited from Device
enum	IO { INPUT , OUTPUT , INPUT_OUTPUT , UNKNOWN }

Static Public Member Functions inherited from Device
static IO	ioConfiguration ()
	Returns the IO configuration of the device (whether the device can handle input, output or both input and output operations)

The documentation for this class was generated from the following file:
