ImFusion::Dicom::OverlayDataComponent Class Reference

#include <ImFusion/Dicom/DicomOverlayDataComponent.h>

DataComponent providing DICOM overlays. More...

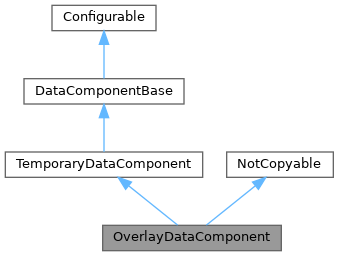

Inheritance diagram for ImFusion::Dicom::OverlayDataComponent:

Detailed Description

DataComponent providing DICOM overlays.

See also

OverlayAnnotation, OverlayAnnotationDataController

Public Member Functions
int	numOverlays () const
SharedImage *	overlay (int frame) const
Eigen::Vector2i	overlayOrigin (int frame) const
std::string	overlayType (int frame) const
void	addOverlay (std::unique_ptr< SharedImage > overlay, const Eigen::Vector2i &origin, const std::string &type)
std::unique_ptr< DataComponentBase >	clone () const override
	Creates a clone of this data component.
bool	assign (const DataComponentBase &other) override
	Assigns the content of other to this data component.
Public Member Functions inherited from ImFusion::TemporaryDataComponent
std::string	id () const override
	Returns a unique string identifier for this type of data component.
std::unique_ptr< DataComponentBase >	clone () const override
	Creates a clone of this data component.
bool	assign (const DataComponentBase &) override
	Assigns the content of other to this data component.
bool	equals (const DataComponentBase &) const override
	Compares this data component to other for equality.
void	configure (const Properties *) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *) const override
	Serialize the current object configuration into the given Properties object.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Additional Inherited Members
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Member Functions inherited from ImFusion::DataComponentBase
	DataComponentBase (const DataComponentBase &)=default
DataComponentBase &	operator= (const DataComponentBase &other)=default
Protected Member Functions inherited from ImFusion::Utils::NotCopyable
	NotCopyable (NotCopyable &&) noexcept=default
NotCopyable &	operator= (NotCopyable &&) noexcept=default
	NotCopyable (const NotCopyable &)=delete
NotCopyable &	operator= (const NotCopyable &)=delete
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Function Documentation

clone()

std::unique_ptr< DataComponentBase > ImFusion::Dicom::OverlayDataComponent::clone ( ) const

overridevirtual

Creates a clone of this data component.

Implements ImFusion::DataComponentBase.

assign()

bool ImFusion::Dicom::OverlayDataComponent::assign ( const DataComponentBase & other )

overridevirtual

Assigns the content of other to this data component.

Parameters

other

Source data component for assignment.

Implements ImFusion::DataComponentBase.

---

The documentation for this class was generated from the following file:

• ImFusion/Dicom/DicomOverlayDataComponent.h
