#include <ImFusion/CT/DicomConeBeamIOD.h>
DICOM IOD for cone-beam CT data. More...

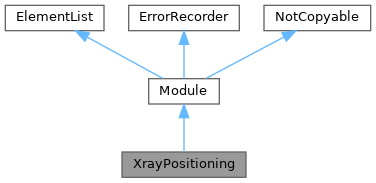

Inheritance diagram for XrayPositioning:DICOM IOD for cone-beam CT data.
Implements DICOM modules for cone-beam geometry and positioning (PS 3.3 C.8.11.5, C.8.7.5).
Classes | |
| class | ZiehmImageSpotPositionSequence |
| This is a implementation private Ziehm tag Sequence see: https://www.ziehm.com/fileadmin/user_upload/row/Footer/DICOM_EN_28415_01_01_2018.pdf. More... | |
Public Member Functions | |
| XrayPositioning (Dicom::ModuleList &parent, Dicom::Module::Type type) | |
| void | loadGeometry (SharedImageSet &coneBeamData, int which) |
| Loads geometry data if available of frame 'which'. | |
| Public Member Functions inherited from Module | |
| Module (ModuleList &parent, Type type) | |
| Creates a new Dicom Module, registers it with the given parent and sets the given type/conditionality. | |
| virtual bool | isMandatory () const |
| Evaluates whether this module is mandatory (based on the specified type and optionally condition). | |
| void | setCondition (std::function< bool()> predicate) |
| Sets a callback function that determines if a conditional module is mandatory. | |
| virtual void | checkErrors (bool ignoreMandatory=false) const |
| Checks the module for errors. | |
| DcmItem & | dataset () override |
| Returns the data set this module corresponds to. | |
| Public Member Functions inherited from ElementList | |
| const std::vector< ElementBase * > & | elements () const |
| List of all elements. | |
| Public Member Functions inherited from ErrorRecorder | |
| virtual void * | registerErrorHandler (ErrorCallback handler) |
| Registers a new handler callback function. | |
| virtual void | unregisterErrorHandler (void *handler) |
| Removes a previously registered handler again. | |
| void * | forwardErrors (const ErrorRecorder *otherRecorder) |
| Convenient function to forward all errors registered to this recorder to another recorder. | |
| virtual void | registerError (const Error &error) const |
| Sends the given error to all error handler callbacks. | |
| void | registerError (Error::Code code, Error::Type type, const std::string &details, TagProxy tag=TagProxy()) const |
Static Public Member Functions | |
| static void | setFlipAndCropZiehmData (bool enable) |
| Enables or disables automatic cropping and flipping of Ziehm CBCT data (default: enabled) | |
Public Attributes | |
| Dicom::Element< double > | primaryAngle |
| Dicom::Element< double > | secondaryAngle |
| Dicom::Element< std::vector< double > > | primaryAngleIncrement |
| Dicom::Element< double > | secondaryAngleIncrement |
| Dicom::Element< double > | distanceSourceToDetector |
| Dicom::Element< double > | distanceSourceToPatient |
| Dicom::Element< double > | distanceSourceToIsoCenter |
| Dicom::Element< vec2 > | imagerPixelSpacing |
| Dicom::Element< std::vector< double > > | fieldOfViewDimensions |
| Dicom::Element< vec2 > | detectorElementSpacing |
| Dicom::Element< std::vector< double > > | ziehmImagePosition |
| Dicom::Element< std::vector< double > > | ziehmSpotPosition |
| Dicom::Sequence< ZiehmImageSpotPositionSequence > | ziehmSequence |
| Dicom::Element< vec2 > | imagePlanePixelSpacing |
| Dicom::Element< std::string > | collLeftVertEdge |
| Dicom::Element< std::string > | collRightVertEdge |
| Dicom::Element< std::string > | collUpperHorEdge |
| Dicom::Element< std::string > | collLowerHorEdge |
| Dicom::Element< std::string > | sourceAxisDistance |
| Dicom::Element< std::string > | aAxisDegrees |
| Dicom::Element< std::string > | cAxisDegrees |
| Dicom::Element< std::string > | yAxisDegrees |
| Dicom::Element< std::string > | zAxisDegrees |
| Dicom::Element< std::vector< unsigned char > > | detectorElementTransverseSpacing |
| Dicom::Element< std::vector< unsigned char > > | detectorElementAxialSpacing |
| Dicom::Element< std::vector< unsigned char > > | constantRadialDistance |
| Dicom::Element< std::vector< unsigned char > > | detectorFocalCenterAngularPosition |
| Dicom::Element< std::vector< unsigned char > > | detectorFocalCenterAxialPosition |
| Dicom::Element< std::vector< unsigned char > > | detectorFocalCenterRadialDistance |
| Dicom::Element< std::vector< unsigned char > > | detectorCentralElement |
| Dicom::Element< std::vector< unsigned char > > | sourceAngularPositionShift |
| Dicom::Element< std::vector< unsigned char > > | sourceAxialPositionShift |
| Dicom::Element< std::vector< unsigned char > > | sourceRadialDistanceShift |
| Dicom::Element< double > | rescaleIntercept |
| Dicom::Element< double > | rescaleSlope |
| Dicom::Element< std::vector< unsigned char > > | detectorShape |
| Dicom::Element< double > | spiralPitchFactor |
| Dicom::Element< std::string > | imageType |
| Dicom::Element< std::vector< double > > | siemensDetectorRotation |
| Dicom::Element< int > | siemensSourceIsoCenter |
Additional Inherited Members | |
| Public Types inherited from Module | |
| enum | Type { Mandatory , UserOption , Conditional } |
| Conditionality of the module. | |
| Public Types inherited from ErrorRecorder | |
| using | ErrorCallback = std::function<void(const Error&)> |
| Alias for a function to call for each error recorded. | |
| Protected Member Functions inherited from NotCopyable | |
| NotCopyable (NotCopyable &&) noexcept=default | |
| NotCopyable & | operator= (NotCopyable &&) noexcept=default |
| NotCopyable (const NotCopyable &)=delete | |
| NotCopyable & | operator= (const NotCopyable &)=delete |
| Protected Attributes inherited from Module | |
| ModuleList & | m_parent |
| List this module is part of. | |
| DcmItem & | m_dataset |
| The data set this module corresponds to. | |
| Type | m_type |
| Conditionality of this module. | |
| std::function< bool()> | m_typeCondition |
| Optional predicate function to evaluate mandatoriness. | |
| Protected Attributes inherited from ElementList | |
| std::vector< ElementBase * > | m_elements |
| List of all elements. | |
| void loadGeometry | ( | SharedImageSet & | coneBeamData, |
| int | which ) |
Loads geometry data if available of frame 'which'.
Automatically resizes vectors in geometry to totalNumFrames.
