#include <AnatomyPlugin/include/ImFusion/AnatomyPlugin/AnatomicalStructureRegistration.h>
Interface for registering AnatomicalStructure objects to each other. More...

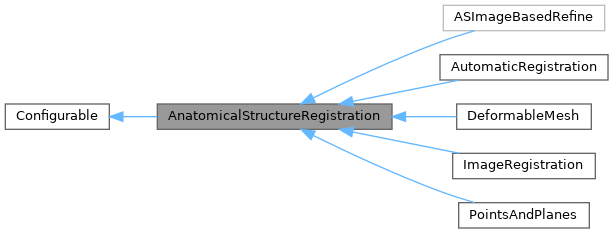

Inheritance diagram for AnatomicalStructureRegistration:Interface for registering AnatomicalStructure objects to each other.
Public Types | |
| enum class | RegistrationType { GlobalScaledE3 = 1 << 0 , LocalScaledE3 = 1 << 1 , Deformable = 1 << 2 } |
Public Member Functions | |
| virtual std::optional< AnatomicalStructureDeformation > | computeRegistration (const AnatomicalStructure &fixed, AnatomicalStructure &moving, bool rigid=false, const AnatomicalStructureDeformation *init=nullptr) const =0 |
| virtual bool | canRegister (const AnatomicalStructure &fixed, AnatomicalStructure &moving, bool rigid=false, const AnatomicalStructureDeformation *init=nullptr) const =0 |
| Returns true if the registration can be performed, i.e. the required data is available. | |
| virtual RegistrationType | registrationType () const =0 |
| The maximum type of registration supported by this class. Should return either LocalScaledE3 or Deformable. | |
| Public Member Functions inherited from Configurable | |
| virtual void | configure (const Properties *p) |
| Configure this object instance by de-serializing the given Properties. | |
| virtual void | configuration (Properties *p) const |
| Serialize the current object configuration into the given Properties object. | |
| virtual void | configureDefaults () |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
Additional Inherited Members | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
|
pure virtual |
Returns true if the registration can be performed, i.e. the required data is available.
Implemented in AutomaticRegistration, DeformableMesh, ImageRegistration, PointsAndPlanes, and ASImageBasedRefine.
|
pure virtual |
The maximum type of registration supported by this class. Should return either LocalScaledE3 or Deformable.
Implemented in AutomaticRegistration, DeformableMesh, ImageRegistration, PointsAndPlanes, and ASImageBasedRefine.
