Detailed Description

Network communication functionality.

This component provides an easy-to-use abstraction for network communication, eliminating the need to manage protocol details.

Message handling is built upon our Signal infrastructure and supports the transmission of std::string and ByteBuffer over Websocket, TCP, and UDP. Incoming and outgoing messages are processed asynchronously on separate threads, enabling non-blocking operation. This requires that signal callbacks must be handled properly, as they can originate from arbitrary threads.

Overview

The ImFusion Network infrastructure facilitates the sending and receiving of messages or data between devices.

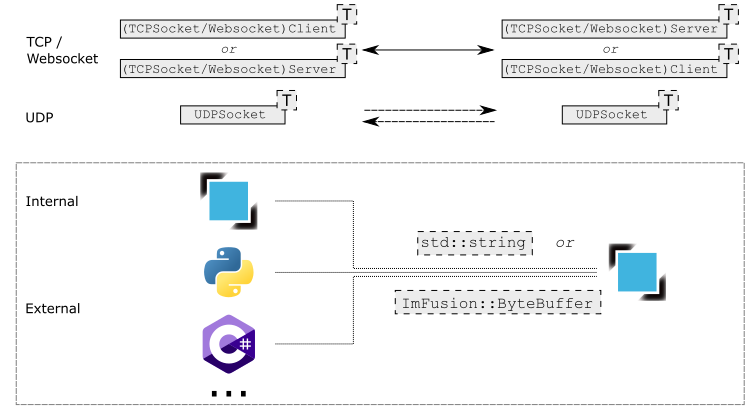

Network communication overview. TCP/Websocket/UDP communication with std::string or ByteBuffer payload.

For simple message exchange (raw text, json, xml, etc.), the default message type std::string should be used, where the underlying memory representation is sent, and received bytes are interpreted in the same manner. It is recommended to use UTF-8 encoding with the same locale on both ends to prevent misinterpretation. If a direct text representation is not available, exchanging raw bytes via ByteBuffer is preferred. For data exchange, utility functions are provided to serialize Data objects into a ByteBuffer and deserialize a ByteBuffer back into Data, enabling seamless communication (see Data serialization).

Communication within the ImFusion framework

Communication within the ImFusion framework is straightforward, utilizing either a client-server pair (TCP or WebSocket) or a symmetric UDP socket. For a client-server architecture, one or more WebsocketClient or TCPSocketClient instances can connect to a corresponding WebsocketServer or TCPSocketServer (see example for WebSocket below). Alternatively, a symmetric approach can be used with the connection-free UDP protocol via the UDPSocket class, though this method does not guarantee delivery due to potential packet loss.

Example of a Websocket connection:

// This example demonstrates a simple WebSocket server and client using the Network library.
// It shows how to set up a server that listens for incoming connections and a client that connects to the server.
// The server echoes back any messages it receives from the client and prints them to the console.
// Normally, you would only have either a server or a client in your application, but for demonstration purposes, both are included here.

// Create and start a WebSocket server listening on localhost (127.0.0.1) at port 12345.
Network::WebsocketServer<> websocketServer{"127.0.0.1", 12345};
websocketServer.run();

// Set up a handler for when the server receives a new message.
websocketServer.signalNewMessage.connect([&websocketServer](std::shared_ptr<std::string> msg) {
    std::cout << "Server received message: " << *msg << std::endl;
    // Echo the received message back to the client.
    websocketServer.sendMessage(*msg);
});

// Create a WebSocket client that will connect to the server at localhost:12345.
Network::WebsocketClient<> websocketClient{"127.0.0.1", 12345};

// Set up a handler for when the client receives a new message from the server.
websocketClient.signalNewMessage.connect([](std::shared_ptr<std::string> msg) {
    std::cout << "Client received message back: " << *msg << std::endl;
});

// Connect the client to the server, with a timeout of 10 seconds (10000 ms).
websocketClient.connect(10000);

// Send a message from the client to the server. The server replies the same message.
websocketClient.sendMessage("Hello world!");

// ... (other application logic can go here)

// At the end, disconnect the client and stop the server to clean up resources.
websocketClient.disconnect();
websocketServer.stop();

Communication with external components

Websocket/TCP/UDP communication is not restricted to the ImFusion framework. Any external peer can exchange information with ImFusion network communication classes, provided they implement the corresponding protocol. In such cases, the programmer is responsible for correctly interpreting the received bytes on both ends. Beyond the typical use case of communication between two computers within a local network, this approach can also serve as a simple method for exchanging data between programs running on the same machine (localhost mode).

To facilitate integration, the ImFusion example repository includes code samples demonstrating data exchange with other programming languages:

Python example: Code

C# example: Code

Data serialization

We provide utility functions for generic data serialization. The serialization function dataToByteBuffer and deserialization function dataFromByteBuffer utilize ImFusionFile serialization functions internally. Consequently, any Data object for which the ImFusionFilePlugin interface is implemented, including custom Data implementations, can be serialized and deserialized.

Namespaces
namespace	ImFusion::Network
	Namespace for network communication bundled in the subfolder 'Stream/Network'.

Classes
class	ClientConnectionBase< Payload >
	Base class providing an interface for client communication. More...

class	ConnectionBase
	Abstract non-templated base class for all connection types. More...

class	TypedConnectionBase< Payload >
	Templated base class providing an interface for client-server communication (e.g., WebSocket, TCP) or peer-to-peer communication (e.g., UDP). More...

struct	ConnectionBlueprint< Payload >
	Defines the necessary information for registering a new connection type. More...

class	ConnectionFactory< Payload >
	The ConnectionFactory manages available connection protocols and creates new connections based on the provided configuration. More...

class	ConnectionLatencyMeasuringAlgorithm
	Measure the delay (latency) experienced in transmitting data with the corresponding protocol, where the transmission data is represented as `std::string`, and the each message is defined as`[TIMESTAMP]:time_in_ms,[ID]:message_id`. More...

class	TCPSocketClient< Payload >
	TCP socket client implementation providing bidirectional communication. More...

class	TCPSocketServer< Payload >
	TCP socket server implementation providing bidirectional communication. More...

class	ServerConnectionBase< Payload >
	Abstract base class providing a server interface. More...

class	WebsocketClient< Payload >
	WebSocket client implementation providing bidirectional communication. More...

class	WebsocketServer< Payload >
	Websocket server implementation providing bidirectional communication. More...

class	UDPSocket< Payload >
	UDP socket implementation for network communication. More...

Typedefs
using	ConnectionProtocol = std::string
	Alias representing the connection protocol type, used to identify connections registered with the ConnectionFactory.

Typedef Documentation

◆ ConnectionProtocol

using ConnectionProtocol = std::string

#include <ImFusion/Stream/Network/ConnectionFactory.h>

Alias representing the connection protocol type, used to identify connections registered with the ConnectionFactory.

Built-in protocols include: "Websocket Client", "Websocket Server", "TCP Socket Client", "TCP Socket Server", and "UDP Socket".
