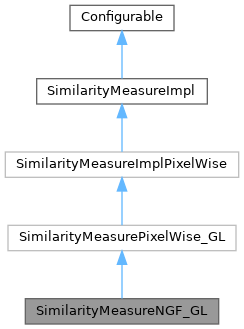

Inheritance diagram for ImFusion::SimilarityMeasureNGF_GL:

Public Member Functions
	SimilarityMeasureNGF_GL (SharedImage img1, SharedImage img2)
Public Member Functions inherited from ImFusion::SimilarityMeasurePixelWise_GL
	SimilarityMeasurePixelWise_GL (SharedImage img1, SharedImage img2, int mode, const char *program=nullptr)
double	compute (const ImageTransformer t, size_t overlap=nullptr) override
	Computes and returns the similarity measure.
double	mean1 () const
	Return mean intensity of first image in overlap area from last NCC computation.
double	mean2 () const
	Return mean intensity of second image in overlap area from last NCC computation.
double	sDev1 () const
double	sDev2 () const
bool	supportsWeights () const override
	Queries the capability whether this similarity measure supports pixel-wise weights.
void	setWeights (const SharedImage weights1, const SharedImage weights2) override
	Sets the images to use as weights for the similarity metric.
Public Member Functions inherited from ImFusion::SimilarityMeasureImplPixelWise
	SimilarityMeasureImplPixelWise (SharedImage img1, SharedImage img2, int mode)
void	configure (const Properties *p) override
	Set one or multiple properties.
void	configuration (Properties *p) const override
	Retrieve the properties of this object.
Public Member Functions inherited from ImFusion::SimilarityMeasureImpl
	SimilarityMeasureImpl (SharedImage img1, SharedImage img2)
	Sets the two images that should be compared. Does not transfer ownership.
virtual bool	setImage1 (SharedImage *img1)
	Replaces the image1 that was set in the constructor with the given image.
virtual bool	setImage2 (SharedImage *img2)
	Replaces the image2 that was set in the constructor with the given image.
virtual SharedImage *	image1 () const
virtual SharedImage *	image2 () const
void	enableImage1Mask (bool enable)
	Specify whether a mask on the first image shall be used if available (true by default).
void	enableImage2Mask (bool enable)
	Specify whether a mask on the second image shall be used if available (true by default).
bool	image1MaskEnabled () const
	Return the flag for using the mask of the first image.
bool	image2MaskEnabled () const
	Return the flag for using the mask of the second image.
Public Member Functions inherited from ImFusion::Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Additional Inherited Members
Static Public Member Functions inherited from ImFusion::SimilarityMeasureImpl
static void	defaultConfiguration (Properties *p)
	Retrieve the default properties of this class.
Public Attributes inherited from ImFusion::Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.
Protected Member Functions inherited from ImFusion::SimilarityMeasureImpl
template<typename T>
double	callTyped (T obj, const MemImage &img1, const MemImage &img2, const ImageTransformer t, size_t *overlap=nullptr)
	Helper method to transform the MemImages to TypedImages.
void	setMaskIncludeArguments (GL::Program *program)
	Sets all uniforms for SimilarityMeasureMask.glh.
void	initMaskInclude (GL::Program *program)
	Initializes the code for the SimilarityMeasureMask.glh code.
std::string	glDefines (bool patchBased) const
	Return shared GL program defines for patch-based and weights, used in LNCC and LC2 OpenGL subclasses.
Protected Attributes inherited from ImFusion::SimilarityMeasureImplPixelWise
int	m_mode
	0: SAD, 1: SSD, 2: NCC
bool	m_absoluteNCC
Protected Attributes inherited from ImFusion::SimilarityMeasureImpl
SharedImage *	m_img1
SharedImage *	m_img2
bool	m_useImg1Mask
bool	m_useImg2Mask
std::shared_ptr< GlMask::MultiIncludeType >	m_maskImg1
std::shared_ptr< GlMask::MultiIncludeType >	m_maskImg2
const SharedImage *	m_weights1
const SharedImage *	m_weights2
Protected Attributes inherited from ImFusion::Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

The documentation for this class was generated from the following file:

ImFusion/Reg/SimilarityMeasurePixelWise.h
