ImFusion::ParameterWrapperBase Class Reference

#include <ImFusion/Base/ParameterOptimization.h>

Base class for classes that wish to expose zero or more optimization parameters. More...

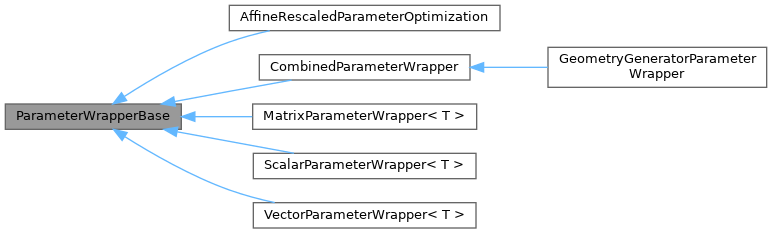

Inheritance diagram for ImFusion::ParameterWrapperBase:

Detailed Description

Base class for classes that wish to expose zero or more optimization parameters.

Classes that inherit from this one serialize and deserialize C++ objects (stored by reference) into an array of double parameters. Such a parameter wrapper can be combined with a double-valued cost function (acting on the C++ objects) to yield an instance of the CostFunction interface (

See also

ParameterOptimization). This CostFunction can be optimized with an instance of the Optimizer class. Effectively this allows users to optimize over suitable C++ types, and abstracts away the machinery required to serialize to double*

Optimizer

Public Member Functions
virtual int	dim () const =0
	The number of (scalar) parameters wrapped by this object.
virtual void	deserialize (const double *v)=0
	Update the stored references from a double representation.
virtual void	serialize (double *v) const =0
	Updates a double representation from the stored references.
virtual std::string	name (int i) const =0
	Name of the ith parameter, used for display purposes.
virtual std::unique_ptr< ParameterWrapperBase >	clone () const =0
	Clone function.

Member Function Documentation

dim()

virtual int ImFusion::ParameterWrapperBase::dim ( ) const

pure virtual

The number of (scalar) parameters wrapped by this object.

Implemented in ImFusion::AffineRescaledParameterOptimization, ImFusion::CombinedParameterWrapper, ImFusion::MatrixParameterWrapper< T >, ImFusion::ScalarParameterWrapper< T >, and ImFusion::VectorParameterWrapper< T >.

deserialize()

virtual void ImFusion::ParameterWrapperBase::deserialize ( const double * v )

pure virtual

Update the stored references from a double representation.

Implemented in ImFusion::AffineRescaledParameterOptimization, ImFusion::CombinedParameterWrapper, ImFusion::CT::GeometryGeneratorParameterWrapper, ImFusion::MatrixParameterWrapper< T >, ImFusion::ScalarParameterWrapper< T >, and ImFusion::VectorParameterWrapper< T >.

serialize()

virtual void ImFusion::ParameterWrapperBase::serialize ( double * v ) const

pure virtual

Updates a double representation from the stored references.

Implemented in ImFusion::AffineRescaledParameterOptimization, ImFusion::CombinedParameterWrapper, ImFusion::MatrixParameterWrapper< T >, ImFusion::ScalarParameterWrapper< T >, and ImFusion::VectorParameterWrapper< T >.

name()

virtual std::string ImFusion::ParameterWrapperBase::name ( int i ) const

pure virtual

Name of the ith parameter, used for display purposes.

Implemented in ImFusion::AffineRescaledParameterOptimization, ImFusion::CombinedParameterWrapper, ImFusion::MatrixParameterWrapper< T >, ImFusion::ScalarParameterWrapper< T >, and ImFusion::VectorParameterWrapper< T >.

clone()

virtual std::unique_ptr< ParameterWrapperBase > ImFusion::ParameterWrapperBase::clone ( ) const

pure virtual

Clone function.

Implemented in ImFusion::AffineRescaledParameterOptimization, ImFusion::CombinedParameterWrapper, ImFusion::MatrixParameterWrapper< T >, ImFusion::ScalarParameterWrapper< T >, and ImFusion::VectorParameterWrapper< T >.

---

The documentation for this class was generated from the following file:

• ImFusion/Base/ParameterOptimization.h
