SegmentItem Class Reference

#include <ImFusion/Dicom/DicomIOD_SegmentationStorage.h>

Element in the (0062,0002) SegmentSequence. More...

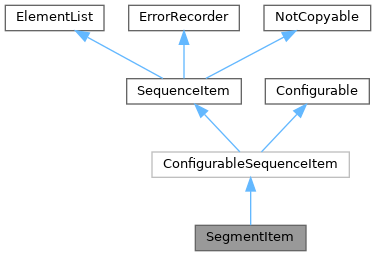

Inheritance diagram for SegmentItem:

Detailed Description

Element in the (0062,0002) SegmentSequence.

Classes
class	SegmentedPropertyCode

Public Member Functions
	SegmentItem (DcmItem &item, bool createSequence=false)
void	configure (const Properties *p) override
	Configure this object instance by de-serializing the given Properties.
void	configuration (Properties *p) const override
	Serialize the current object configuration into the given Properties object.
vec4	color () const
void	setColor (const vec4 &c)
Public Member Functions inherited from ConfigurableSequenceItem
	ConfigurableSequenceItem (DcmItem &item)
Public Member Functions inherited from SequenceItem
	SequenceItem (DcmItem &item)
	Creates a new sequence that retrieves its elements from item.
DcmItem &	dataset () override
	Returns the DICOM dataset/item to retrieve the elements from.
Public Member Functions inherited from ElementList
const std::vector< ElementBase * > &	elements () const
	List of all elements.
Public Member Functions inherited from ErrorRecorder
virtual void *	registerErrorHandler (ErrorCallback handler)
	Registers a new handler callback function.
virtual void	unregisterErrorHandler (void *handler)
	Removes a previously registered handler again.
void *	forwardErrors (const ErrorRecorder *otherRecorder)
	Convenient function to forward all errors registered to this recorder to another recorder.
virtual void	registerError (const Error &error) const
	Sends the given error to all error handler callbacks.
void	registerError (Error::Code code, Error::Type type, const std::string &details, TagProxy tag=TagProxy()) const
Public Member Functions inherited from Configurable
virtual void	configureDefaults ()
	Retrieve the properties of this object, replaces values with their defaults and sets it again.
void	registerParameter (ParameterBase *param)
	Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration().
void	unregisterParameter (const ParameterBase *param)
	Remove the given Parameter or SubProperty from the list of registered parameters.
	Configurable (const Configurable &rhs)
	Configurable (Configurable &&rhs) noexcept
Configurable &	operator= (const Configurable &)
Configurable &	operator= (Configurable &&) noexcept

Public Attributes
Sequence< SegmentedPropertyCode >	segmentedPropertyCategoryCodeSequence
Sequence< SegmentedPropertyCode >	segmentedPropertyTypeCodeSequence
Element< int >	segmentNumber
Element< int >	pixelValue
Element< std::string >	segmentLabel
Element< std::string >	segmentAlgorithmType
Element< std::string >	segmentAlgorithmName
Element< std::vector< int > >	recommendedDisplayCIELabValue
Element< std::string >	trackingID
Element< std::string >	trackingUID
Public Attributes inherited from Configurable
Signal	signalParametersChanged
	Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted.

Additional Inherited Members
Public Types inherited from ErrorRecorder
using	ErrorCallback = std::function<void(const Error&)>
	Alias for a function to call for each error recorded.
Protected Member Functions inherited from NotCopyable
	NotCopyable (NotCopyable &&) noexcept=default
NotCopyable &	operator= (NotCopyable &&) noexcept=default
	NotCopyable (const NotCopyable &)=delete
NotCopyable &	operator= (const NotCopyable &)=delete
Static Protected Member Functions inherited from ConfigurableSequenceItem
template<typename T>
static void	setElement (const Properties &p, Element< T > &element, const std::string &name)
template<typename T>
static void	getElement (Properties &p, const Element< T > &element, const std::string &name)
template<typename T>
static void	getElement (Properties &p, const Element< T > &element, const std::string &name, const T &defaultValue)
static void	getElement (Properties &p, const Element< std::string > &element, const std::string &name, const std::string &defaultValue)
Protected Attributes inherited from ElementList
std::vector< ElementBase * >	m_elements
	List of all elements.
Protected Attributes inherited from Configurable
std::vector< Param >	m_params
	List of all registered Parameter and SubProperty instances.

Member Function Documentation

configure()

void configure ( const Properties * p )

overridevirtual

Configure this object instance by de-serializing the given Properties.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also

configuration() for the inverse functionality

Reimplemented from Configurable.

configuration()

void configuration ( Properties * p ) const

overridevirtual

Serialize the current object configuration into the given Properties object.

The default implementation will do so automatically for all registered Parameter and SubProperty instances.

See also

configure() for the inverse functionality

Reimplemented from Configurable.

---

The documentation for this class was generated from the following file:

• ImFusion/Dicom/DicomIOD_SegmentationStorage.h
