DicomParameter< T > Class Template Reference

#include <ImFusion/Dicom/DicomParameter.h>

A specialized Parameter<T> class that can additionally serialize from and to DICOM. More...

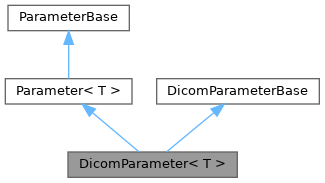

Inheritance diagram for DicomParameter< T >:

Detailed Description

template<typename T>
class ImFusion::Dicom::DicomParameter< T >

A specialized Parameter<T> class that can additionally serialize from and to DICOM.

Especially useful for DataComponents that represent a DICOM module. This class can be used in non-DCMTK code, but instantiating it will require DCMTK. Because of this limitation, it can currently only be used with bool, int, double and std::string.

Example:

struct MyStruct: public Configurable {
    DicomParameter<std::string> p_patientName{"patientName", "", *this, DCM_PatientName};

    void loadFromDicom(DcmItem& dataset) { DicomParameterHelper::loadFromDicom(dataset, m_params); }
    void saveToDicom(DcmItem& dataset) { DicomParameterHelper::saveToDicom(dataset, m_params); }
}

MyStruct test;
test.p_patientName = "Totorro";

DcmDataset dataset;
test.saveToDicom(dataset);
test.loadFromDicom(dataset);

Public Member Functions
template<typename U>
	DicomParameter (const std::string &name, U &&value, const DcmTag &tag, WritePolicy writePolicy=WritePolicy::Always)
template<typename U>
	DicomParameter (const std::string &name, U &&value, Configurable *parent, const DcmTag &tag, WritePolicy writePolicy=WritePolicy::Always)
template<typename U>
	DicomParameter (const std::string &name, U &&value, Configurable &parent, const DcmTag &tag, WritePolicy writePolicy=WritePolicy::Always)
	DicomParameter (const DicomParameter< T > &other)
DicomParameter< T > &	operator= (const DicomParameter< T > &other)
template<typename U>
DicomParameter< T > &	operator= (U &&value)
void	load (DcmItem &item) override
	Loads the parameter value from the given dataset.
void	save (DcmItem &item) const override
	Saves the parameter value to the given dataset.
Public Member Functions inherited from Parameter< T >
template<typename U>
	Parameter (const std::string &name, U &&value)
	Creates a Parameter that will be configured under the given name and with the given initial value.
template<typename U>
	Parameter (const std::string &name, U &&value, Configurable *parent)
	Create a Parameter that is directly registered with the parent Configurable instance.
template<typename U>
	Parameter (const std::string &name, U &&value, Configurable &parent)
	Parameter (const Parameter< T > &other)
	Parameter (Parameter< T > &&other)
Parameter< T > &	operator= (const Parameter< T > &other)
	Assigns value, default value, type, and attributes from another Parameter instance of the same type and emits signalValueChanged.
Parameter< T > &	operator= (Parameter< T > &other)
	Assigns value, default value, type, and attributes from another Parameter instance of the same type and emits signalValueChanged.
Parameter< T > &	operator= (Parameter< T > &&other)
	Assigns value, default value, type, and attributes from another Parameter instance of the same type and emits signalValueChanged.
template<typename U>
Parameter< T > &	operator= (U &&value)
	Updates the Parameter's stored value, emits the signalValueChanged if needed.
template<typename U>
void	setValue (U &&value)
	Updates the Parameter's stored value, emits the signalValueChanged if needed.
const T &	value () const
	Returns the currently stored value.
	operator const T & () const
	Returns the currently stored value.
void	setDefault (const T &defaultValue)
	Sets the default value for this parameter.
void	removeDefault ()
	Removes the default value for this parameter.
std::optional< T >	defaultValue () const
	Returns the default value of this parameter if specified.
void	setType (Properties::ParamType type)
	Sets an optional custom ParamType.
template<typename Q = T>
std::enable_if_t< std::is_arithmetic_v< Q > >	setRange (T min, T max)
	Set the min/max parameter attributes of arithmetic parameters.
template<typename Q = T>
std::enable_if_t< std::is_same_v< Q, std::optional< typename Q::value_type > > &&std::is_arithmetic_v< typename Q::value_type > >	setRange (typename Q::value_type min, typename Q::value_type max)
	Set the min/max parameter attributes of optional arithmetic parameters.
void	configure (const Properties *p) override
	Configure this parameter/sub property by de-serializing the given Properties.
void	configuration (Properties *p) const override
	Serialize the current parameter/sub property state into the given Properties object.
Public Member Functions inherited from ParameterBase
	ParameterBase (const std::string &name)
const Configurable *	parent () const
	Return the parent Configurable instance that this parameter is registered with.
virtual const std::string &	name () const
	Returns parameter name, can only be set during construction.
void	setAttribute (const std::string &key, const std::string &value)
	Add the given attribute key-value pair to the set of parameter attributes.
void	removeAttribute (const std::string &key)
	Remove the attribute with the given key.
const std::map< std::string, std::string > &	attributes () const
	Get the attribute map.
void	setLabel (const std::string &label)
	Sets an optional label for the Parameter if displayed in the UI.
void	addDeprecatedName (const std::string &deprecatedName)
	Adds an optional alternative parameter name that should be used for param lookup for during configure() in case de-serialization from m_name was not successful.
const std::vector< std::string > &	deprecatedNames () const
	Returns the list of deprecated parameter names that should be used for param lookup (see addDeprecatedName()).
Public Member Functions inherited from DicomParameterBase
	DicomParameterBase (const DcmTag &tag, WritePolicy policy)
	DicomParameterBase (const DicomParameterBase &other)
DicomParameterBase &	operator= (const DicomParameterBase &other)

Additional Inherited Members
Public Attributes inherited from ParameterBase
Signal	signalValueChanged
	Signal gets emitted when the underlying value of the Parameter/SubProperty has changed (either through setValue() or configure()).
Protected Member Functions inherited from ParameterBase
void	setParentFromCopy (const ParameterBase &other)
	Helper function to be called from a copy/move ctor in order to correctly set the parent relation ship to the new parent Configurable.
Protected Attributes inherited from Parameter< T >
T	m_value
std::optional< T >	m_defaultValue
Properties::ParamType	m_type = Properties::ParamType::Unknown
Protected Attributes inherited from ParameterBase
Configurable *	m_parent = nullptr
const std::string	m_name
std::vector< std::string >	m_deprecatedNames
std::map< std::string, std::string >	m_attributes
Protected Attributes inherited from DicomParameterBase
Impl *	m_impl

Member Function Documentation

load()

template<typename T>

void load ( DcmItem & item )

overridevirtual

Loads the parameter value from the given dataset.

If the dataset does not contain the tag or there is an error retrieving the value, the default value of the parameter will be used. If the parameter does not have an default value, the value remains unchanged.

Implements DicomParameterBase.

save()

template<typename T>

void save ( DcmItem & item ) const

overridevirtual

Saves the parameter value to the given dataset.

This overwrites any existing value with the same tag. Depending on the WritePolicy, empty values will not be written (and actively removed if already existing).

Implements DicomParameterBase.

---

The documentation for this class was generated from the following file:

• ImFusion/Dicom/DicomParameter.h
