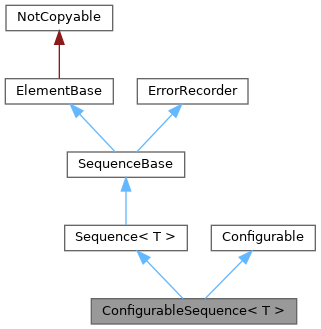

Inheritance diagram for ConfigurableSequence< T >:Public Member Functions | |
| ConfigurableSequence (ElementList &parent, DcmTag tag, ElementBase::Type type, int defaultNumberOfElements) | |
| ConfigurableSequence (DcmItem &item, DcmTag tag, ElementBase::Type type, int defaultNumberOfElements) | |
| void | setDefaultNumberOfElements (int n) |
| void | configure (const Properties *p) override |
| Configure this object instance by de-serializing the given Properties. | |
| void | configuration (Properties *p) const override |
| Serialize the current object configuration into the given Properties object. | |
| void | configureDefaults () override |
| Retrieve the properties of this object, replaces values with their defaults and sets it again. | |
| Public Member Functions inherited from Sequence< T > | |
| Sequence (ElementList &parent, DcmTag tag, ElementBase::Type type) | |
| Creates a new Sequence instance. | |
| Sequence (DcmItem &item, DcmTag tag, ElementBase::Type type) | |
| void | reload () |
| Reloads the list of items from the parent data set. | |
| int | count () const |
| Returns the number of items in this sequence. | |
| T & | item (int i) |
| Returns the sequence item at the given index. | |
| const T & | item (int i) const |
| T * | insertItem () |
| Appends a new sequence item to the list. | |
| void | checkErrors (bool ignoreMandatory=false) const override |
| Checks the sequence for errors. | |
| bool | isValid () const override |
| Returns true if the element exists and is in a valid range. | |
| Public Member Functions inherited from SequenceBase | |
| SequenceBase (ElementList &parent, DcmTag tag, ElementBase::Type type) | |
| SequenceBase (DcmItem &item, DcmTag tag, ElementBase::Type type) | |
| Public Member Functions inherited from ElementBase | |
| ElementBase (ElementList &parent, DcmTag tag, Type type=Conditional, bool searchIntoSubs=false) | |
| ElementBase (DcmItem &item, DcmTag tag, Type type=Conditional, bool searchIntoSubs=false) | |
| void | setCondition (std::function< bool()> predicate) |
| Sets a callback function that determines if a conditional element is mandatory. | |
| virtual DcmTag | tag () const |
| DICOM tag wrapped by this Element. | |
| virtual bool | isMandatory () const |
| Evaluates whether this element is mandatory (based on the specified type and optionally condition). | |
| virtual bool | exists () const |
| Returns true if the elements exists in the dataset. | |
| void | remove () |
| Removes the element from the dataset. | |
| std::string | valueString () const |
| Returns the value of the element as a string. | |
| void | setTargetSequence (DcmItem *sequence) |
| Sets an optional sequence item where this elements will write its value. | |
| Public Member Functions inherited from ErrorRecorder | |
| virtual void * | registerErrorHandler (ErrorCallback handler) |
| Registers a new handler callback function. | |
| virtual void | unregisterErrorHandler (void *handler) |
| Removes a previously registered handler again. | |
| void * | forwardErrors (const ErrorRecorder *otherRecorder) |
| Convenient function to forward all errors registered to this recorder to another recorder. | |
| virtual void | registerError (const Error &error) const |
| Sends the given error to all error handler callbacks. | |
| void | registerError (Error::Code code, Error::Type type, const std::string &details, TagProxy tag=TagProxy()) const |
| Public Member Functions inherited from Configurable | |
| void | registerParameter (ParameterBase *param) |
| Register the given Parameter or SubProperty, so that it will be configured during configure()/configuration(). | |
| void | unregisterParameter (const ParameterBase *param) |
| Remove the given Parameter or SubProperty from the list of registered parameters. | |
| Configurable (const Configurable &rhs) | |
| Configurable (Configurable &&rhs) noexcept | |
| Configurable & | operator= (const Configurable &) |
| Configurable & | operator= (Configurable &&) noexcept |
Additional Inherited Members | |
| Public Types inherited from ElementBase | |
| enum | Type { Mandatory , Conditional } |
| Conditionality of an Element. More... | |
| Public Types inherited from ErrorRecorder | |
| using | ErrorCallback = std::function<void(const Error&)> |
| Alias for a function to call for each error recorded. | |
| Public Attributes inherited from Configurable | |
| Signal | signalParametersChanged |
Emitted whenever one of the registered Parameters' or SubPropertys' signalValueChanged signal was emitted. | |
| Protected Attributes inherited from Sequence< T > | |
| std::vector< std::unique_ptr< T > > | m_items |
| Protected Attributes inherited from ElementBase | |
| DcmItem & | m_dataset |
| DICOM data set/base element to retrieve element data from. | |
| DcmItem * | m_targetSeq |
| Optional sequence to write element data to; only used for setValue(). | |
| DcmTag | m_tag |
| DICOM tag the Element refers to. | |
| Type | m_type |
| Conditionality of the Element. | |
| bool | m_searchIntoSubs |
| Flag whether to search into sub sequences or not. | |
| std::function< bool()> | m_typeCondition |
| Optional predicate function to evaluate conditionality. | |
| Protected Attributes inherited from Configurable | |
| std::vector< Param > | m_params |
| List of all registered Parameter and SubProperty instances. | |
|
inlineoverridevirtual |
Configure this object instance by de-serializing the given Properties.
The default implementation will do so automatically for all registered Parameter and SubProperty instances.
Reimplemented from Configurable.
|
inlineoverridevirtual |
Serialize the current object configuration into the given Properties object.
The default implementation will do so automatically for all registered Parameter and SubProperty instances.
Reimplemented from Configurable.
|
inlineoverridevirtual |
Retrieve the properties of this object, replaces values with their defaults and sets it again.
Reimplemented from Configurable.
