ImFusion::BinarySerializable Class Reference

#include <ImFusion/Base/BinarySerializable.h>

Interface for class which can be serialized and deserialized. More...

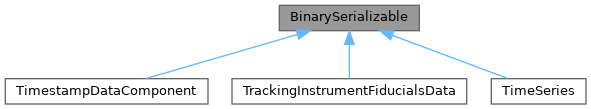

Inheritance diagram for ImFusion::BinarySerializable:

Detailed Description

Interface for class which can be serialized and deserialized.

Make sure to ensure platform independence, for instance by using fixed-sized types for binary serialization such as int32_t.

See also

Object Serialization

Public Member Functions
virtual size_t	saveBufferSize () const =0
	Returns the total amount of bytes required for serialization.
virtual void	loadFromBuffer (const char *buffer, size_t len)=0
	Restores the state of this object from a memory buffer, using maximum len bytes.
virtual void	saveToBuffer (char *buffer) const =0
	Saves the state of this object into a memory buffer, using maximum saveBufferSize() bytes.
std::string	saveToString () const
	Saves the state of this object into a string. Internally uses saveToBuffer.
void	loadFromString (const std::string &str)
	Restores the state of this object from a string, internally using loadFromBuffer.

Protected Member Functions
template<typename T>
size_t	serializeMember (char *&buffer, const T *data, size_t n=1) const
	Convenience method to memcpy n*sizeof(T) bytes of data to buffer, followed by an increment of buffer by n*sizeof(T).
template<typename T>
size_t	deserializeMember (const char *&buffer, T *data, size_t n=1)
	Convenience method to memcpy n*sizeof(T) bytes of buffer to data, followed by an increment of buffer by n*sizeof(T).

Member Function Documentation

saveBufferSize()

virtual size_t ImFusion::BinarySerializable::saveBufferSize ( ) const

pure virtual

Returns the total amount of bytes required for serialization.

Implemented in ImFusion::TimestampDataComponent, ImFusion::TrackingInstrumentFiducialsData, and ImFusion::VitalsDataComponent::TimeSeries.

loadFromBuffer()

virtual void ImFusion::BinarySerializable::loadFromBuffer ( const char * buffer, size_t len )

pure virtual

Restores the state of this object from a memory buffer, using maximum len bytes.

Implemented in ImFusion::TimestampDataComponent, ImFusion::TrackingInstrumentFiducialsData, and ImFusion::VitalsDataComponent::TimeSeries.

saveToBuffer()

virtual void ImFusion::BinarySerializable::saveToBuffer ( char * buffer ) const

pure virtual

Saves the state of this object into a memory buffer, using maximum saveBufferSize() bytes.

Implemented in ImFusion::TimestampDataComponent, ImFusion::TrackingInstrumentFiducialsData, and ImFusion::VitalsDataComponent::TimeSeries.

---

The documentation for this class was generated from the following file:

• ImFusion/Base/BinarySerializable.h
